# ESP32

Pada tutorial ini akan dijelaskan instalasi board ESP32 yang digunakan pada Dokumentasi pada Antares Platform.

## Langkah Instalasi

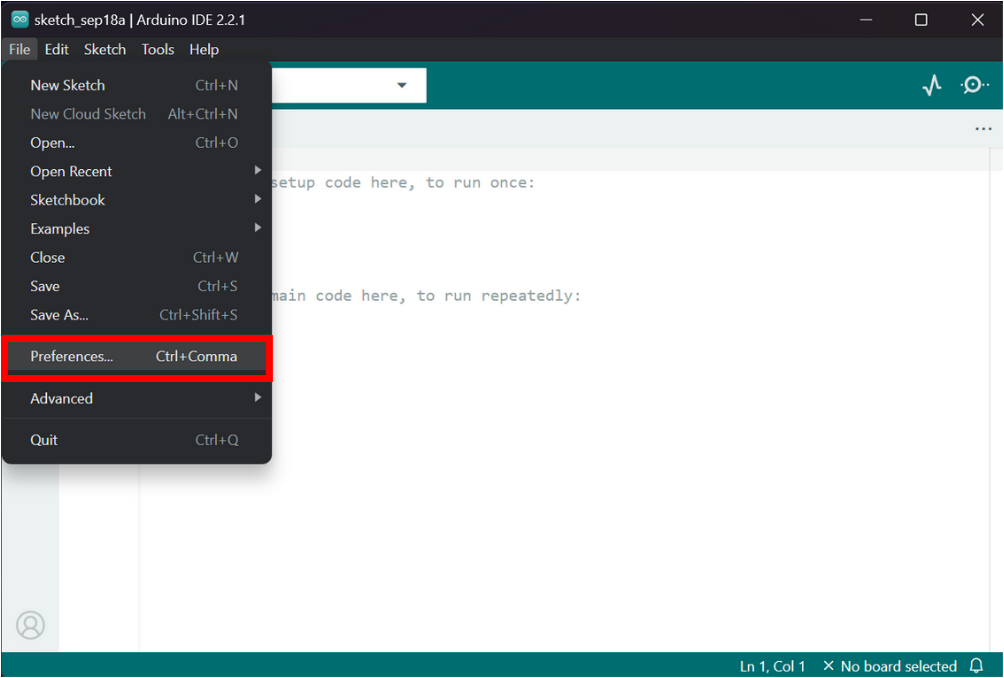

### 1. Buka Arduino IDE , kemudian pilih Files -> Preferences

<figure><img src="/files/8v8JaxBvKMAYIL4du7aZ" alt=""><figcaption></figcaption></figure>

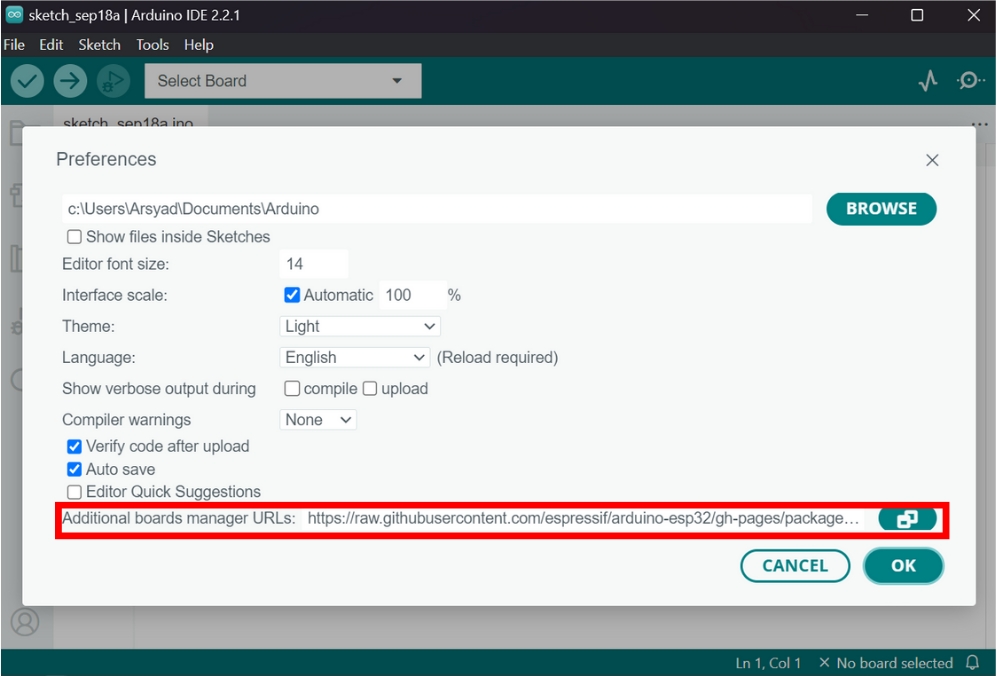

### 2. Masukkan URL berikut ke dalam kotak Additional Board Manager URLs kemudian klik OK.

```
/https://raw.githubusercontent.com/espressif/arduino-esp32/gh-pages/package_esp32_index.json
```

<figure><img src="/files/1V8iTiILSf450r3qQ80v" alt=""><figcaption></figcaption></figure>

{% hint style="info" %}
Anda dapat menambahkan beberapa URL dengan menambahkan koma untuk memisahkannya jika diperlukan.

```
URL1,URL2
example :
https://raw.githubusercontent.com/espressif/arduino-esp32/gh-pages/package_esp32_index.json,URL2
```

{% endhint %}

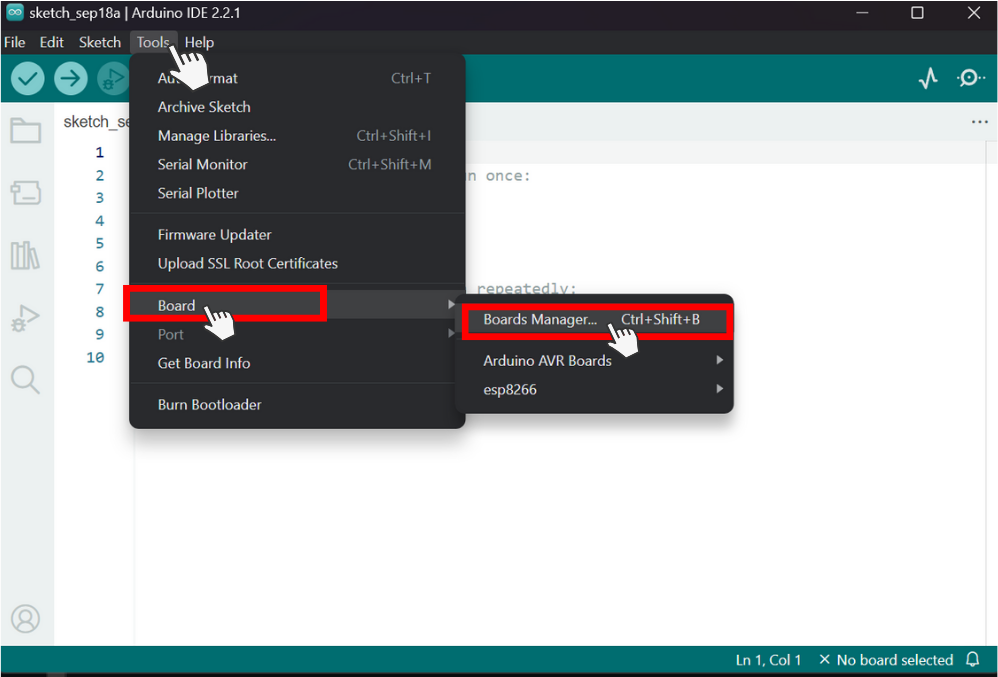

### 3. Pilih **Tools -> Board -> Boards Manager**

<figure><img src="/files/vKEgrwjQVDWj0lZeTKWM" alt=""><figcaption></figcaption></figure>

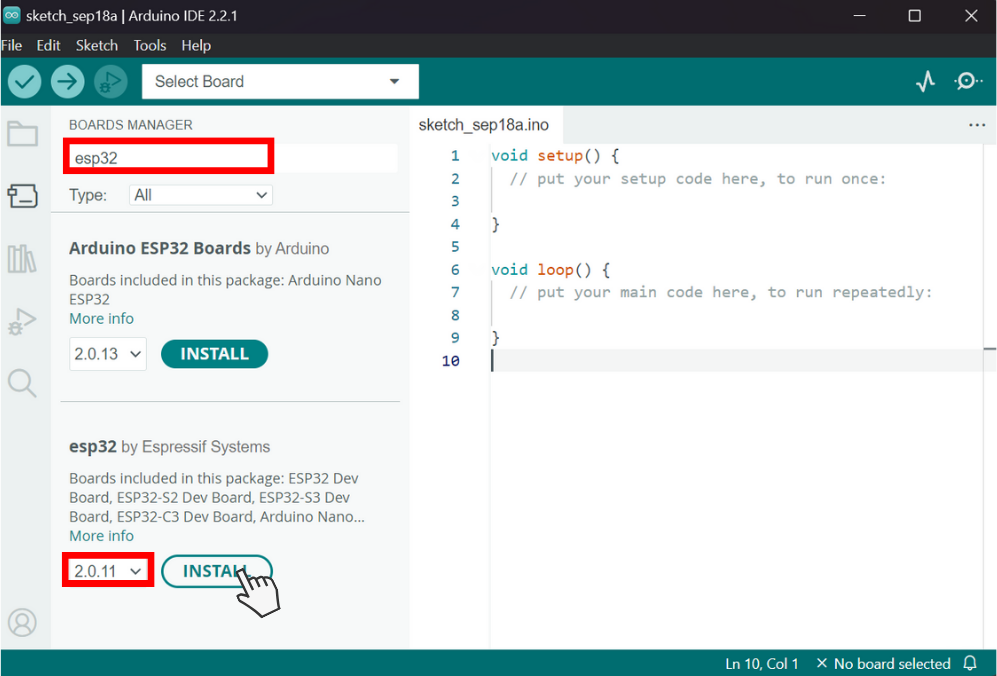

### 4. Masukkan kata kunci "esp32" pada kotak pencarian untuk memudahkan Anda. Jika sudah menemukan esp32 by Espressif System, pada dokumentasi Antares disini menggunakan versi 2.0.11 dan kemudian klik Install.

<figure><img src="/files/QYU3il6XbDX4yHUxRDuo" alt=""><figcaption></figcaption></figure>

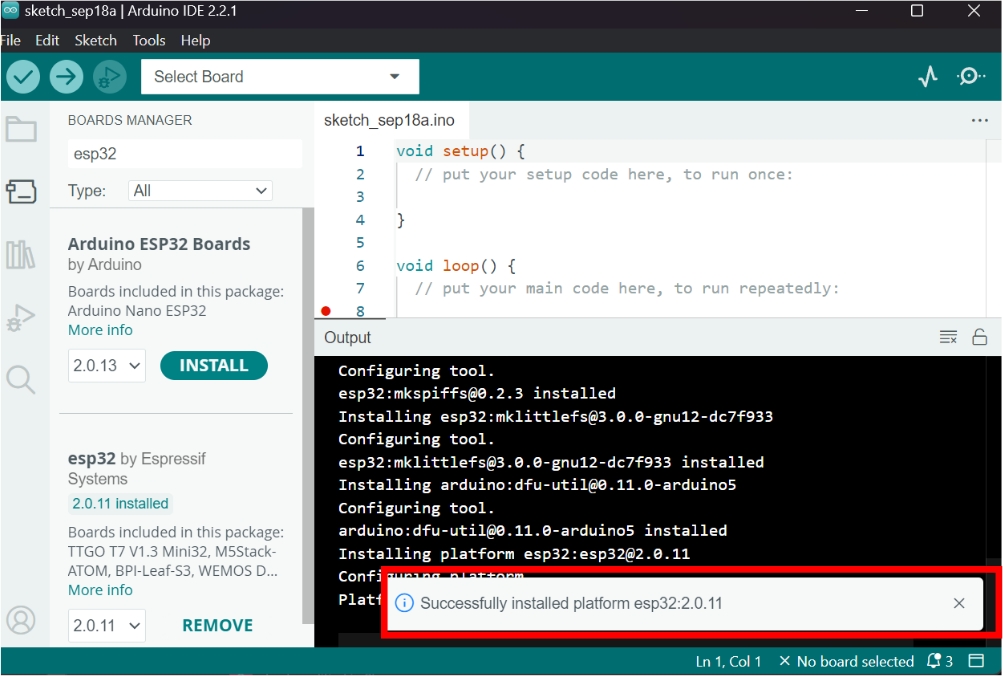

### 5.  Tunggu beberapa saat hingga instalasi selesai

<figure><img src="/files/6MsXJn5Wdm38vKAjeuMk" alt=""><figcaption></figcaption></figure>


---
