# ESP8266

Pada tutorial ini akan dijelaskan instalasi board ESP8266 yang digunakan pada Dokumentasi ESP8266  yang terdapat pada Antares Platform.

## Langkah Instalasi

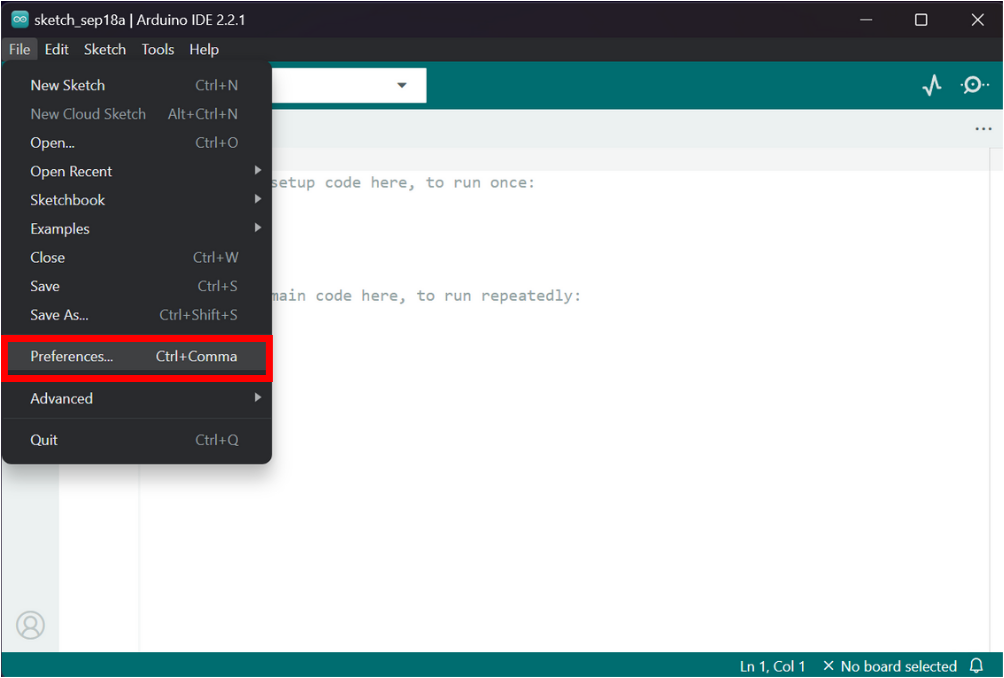

### 1. Buka Arduino IDE , kemudian pilih Files -> Preferences

<figure><img src="/files/mW86eUSP9oEFcHm15nII" alt=""><figcaption></figcaption></figure>

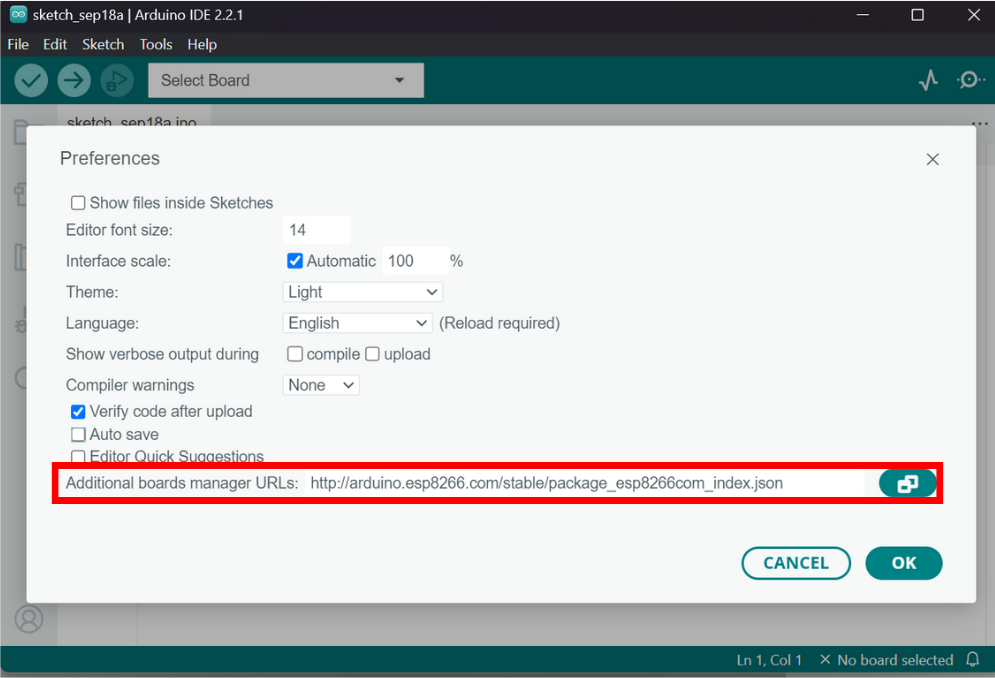

### 2. Masukkan URL berikut ke dalam kotak Additional Board Manager URLs kemudian klik OK.

```
http://arduino.esp8266.com/stable/package_esp8266com_index.json
```

<figure><img src="/files/20PUvjzVQ6upGVqmHcWJ" alt=""><figcaption></figcaption></figure>

{% hint style="info" %}
Anda dapat menambahkan beberapa URL dengan menambahkan koma untuk memisahkannya jika diperlukan.

```
URL1,URL2
example :
http://arduino.esp8266.com/stable/package_esp8266com_index.json,URL2
```

{% endhint %}

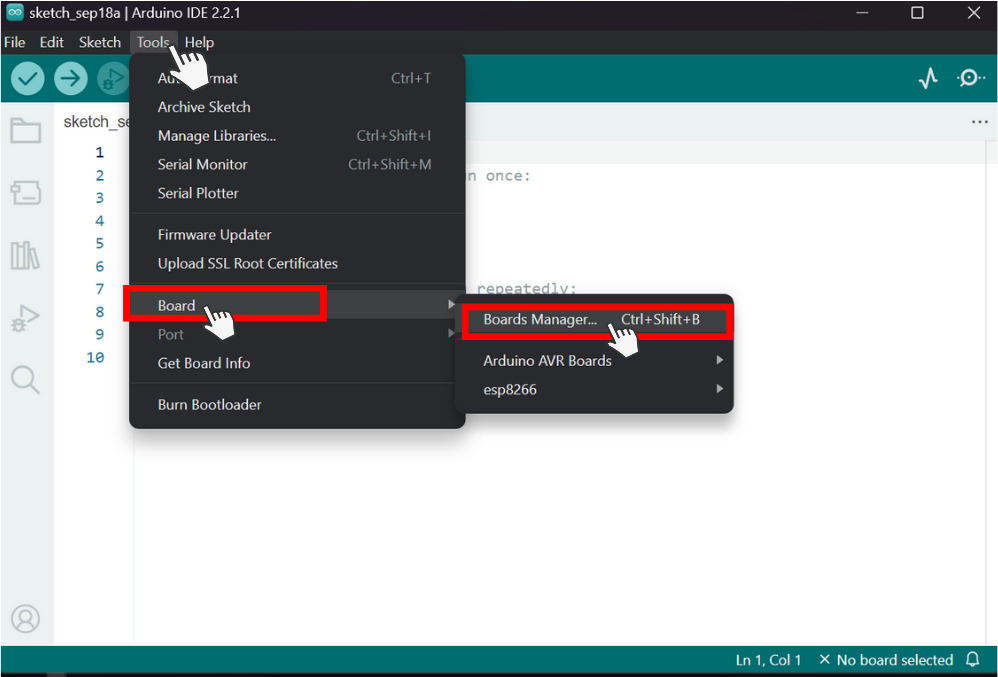

### 3. Pilih **Tools -> Board -> Boards Manager**

<figure><img src="/files/uyvp8mS2Nt9ucd0MdkmZ" alt=""><figcaption></figcaption></figure>

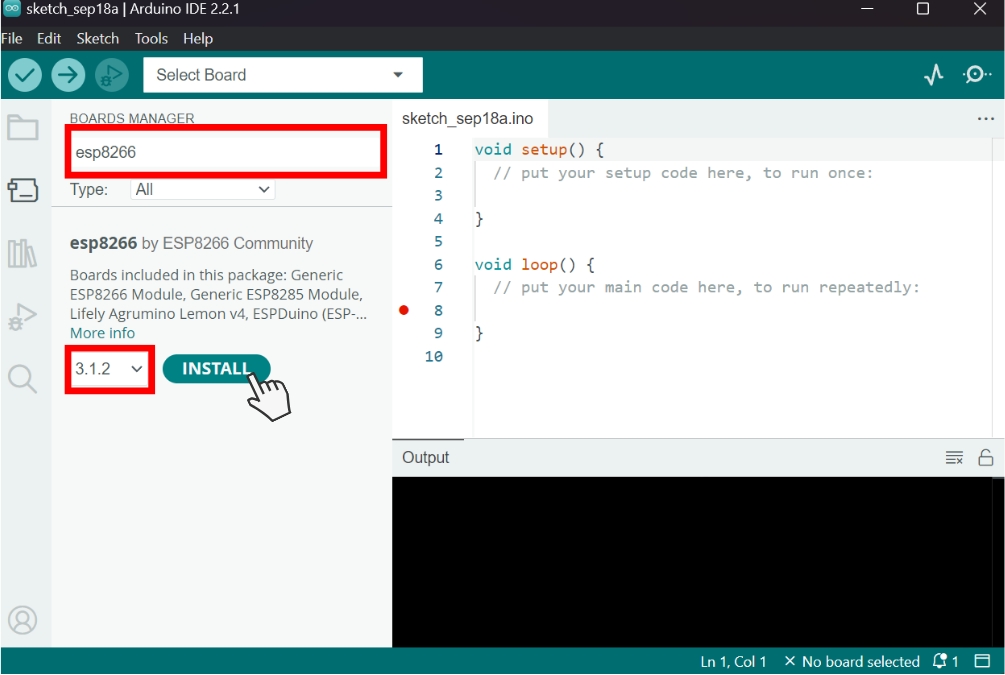

### 4. Masukkan kata kunci "esp8266" pada kotak pencarian untuk memudahkan Anda. Jika sudah menemukan esp8266 by ESP8266 Community, pada dokumentasi Antares disini menggunakan versi 3.1.2 dan kemudian klik Install.

<figure><img src="/files/F9v0Gix3Zdt4cw2025WA" alt=""><figcaption></figcaption></figure>

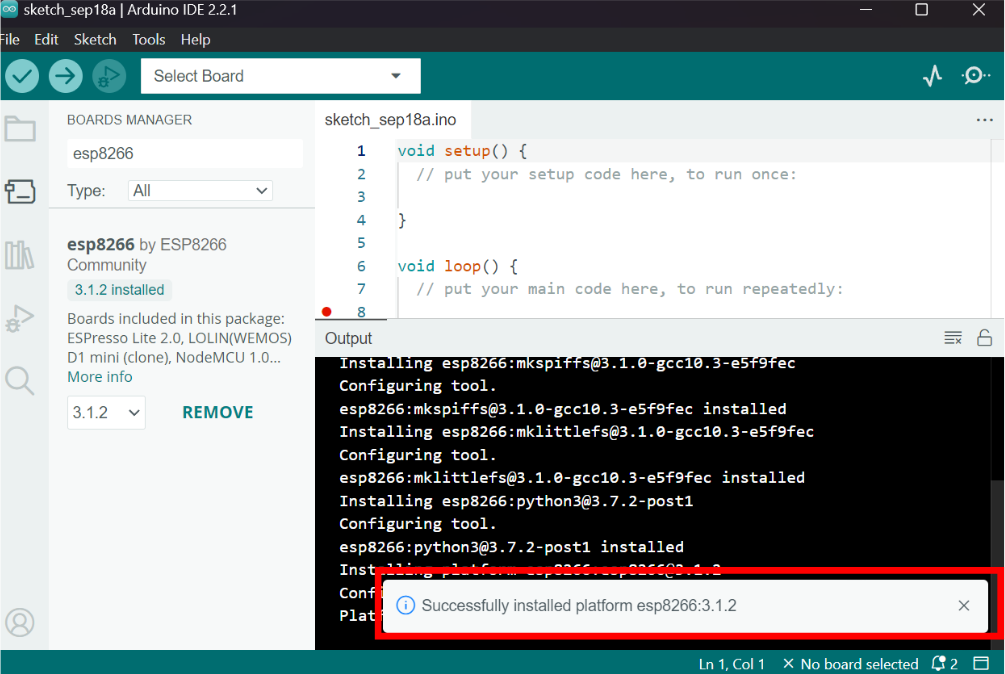

### 5.  Tunggu beberapa saat hingga instalasi selesai

<figure><img src="/files/SlTZeKrFTmkjO7Ah7k1S" alt=""><figcaption></figcaption></figure>


---
