In this project, you will display data from the Antares IoT Platform on an OLED using the Lynx-32 Development Board module. In this Antares Shield Workshop, there are temperature, humidity (DHT11), relay, LED, and push button sensors. You will send a message in the form of data displayed on the OLED display. The process of sending this data uses POSTMAN Software to send data to the Antares IoT Platform.
Prerequisites
The additional materials specific to this project are as follows.
You can open the programme code in the Arduino IDE via File > Examples > Antares ESP HTTP > Lynx32-Simple-Project > GET_DATA_OLED.
The following is the GET_DATA_OLED example programme code.
3. Set Wi-Fi Credential and Antares Credential in Program Code
Change the HTTP Protocol parameters in the following variables *ACCESSKEY, *WIFISSID, *PASSWORD, *projectName, and *deviceName. Adjust to the parameters in the Antares console.
The *Access key parameter is obtained from your Antares account page.
Access Key Location on Antares Account Page
The WIFISSID parameter is obtained from the name of the Wifi / Hotspot that is currently being used by you. for example in the image below.
WIFISSID
The *PASSWORD parameter is obtained from the WiFi password you are currently using.
The parameters *projectName and *deviceName are obtained from the Application Name and Device Name that have been created in the Antares account.

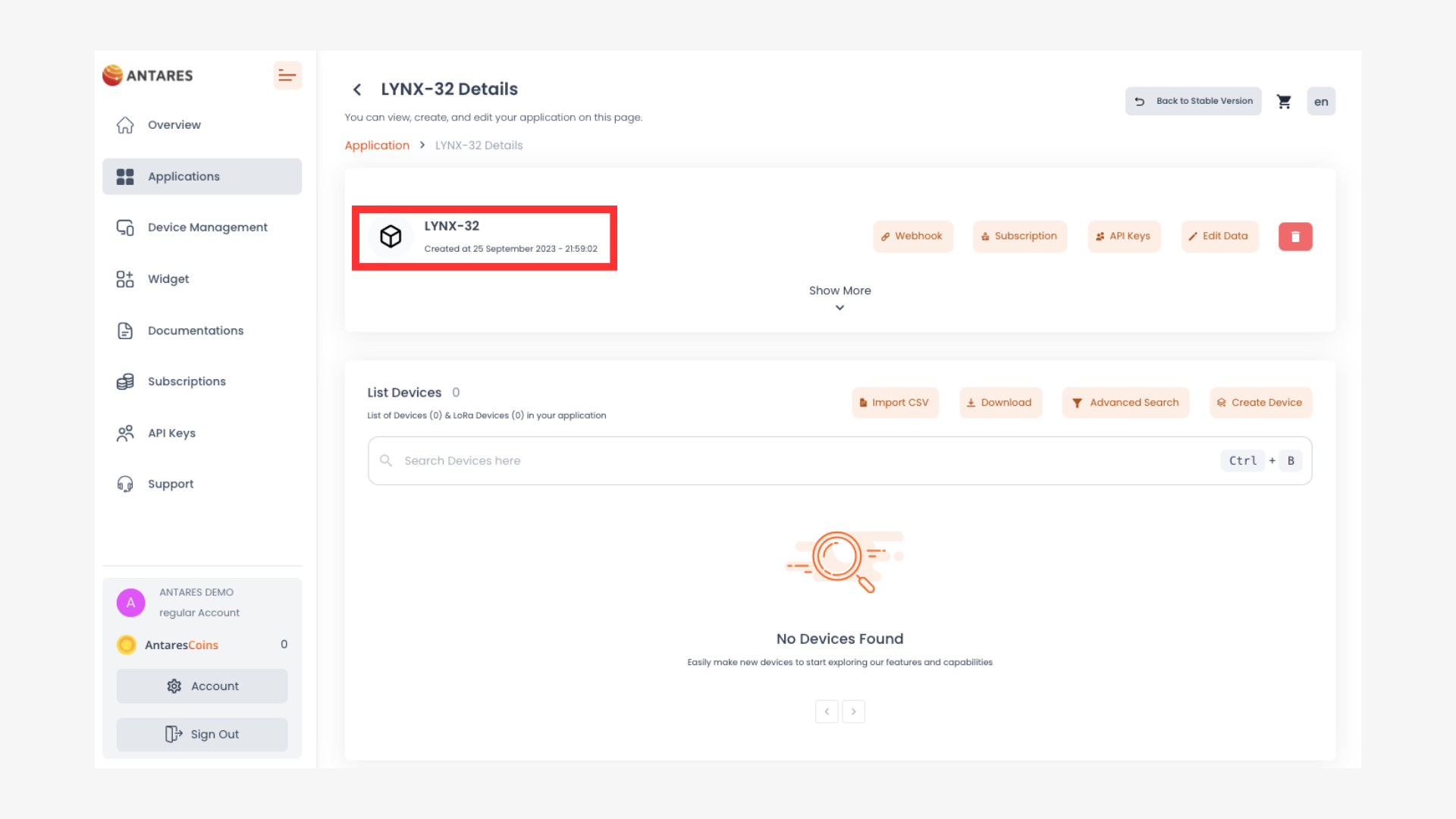

Application Name Display

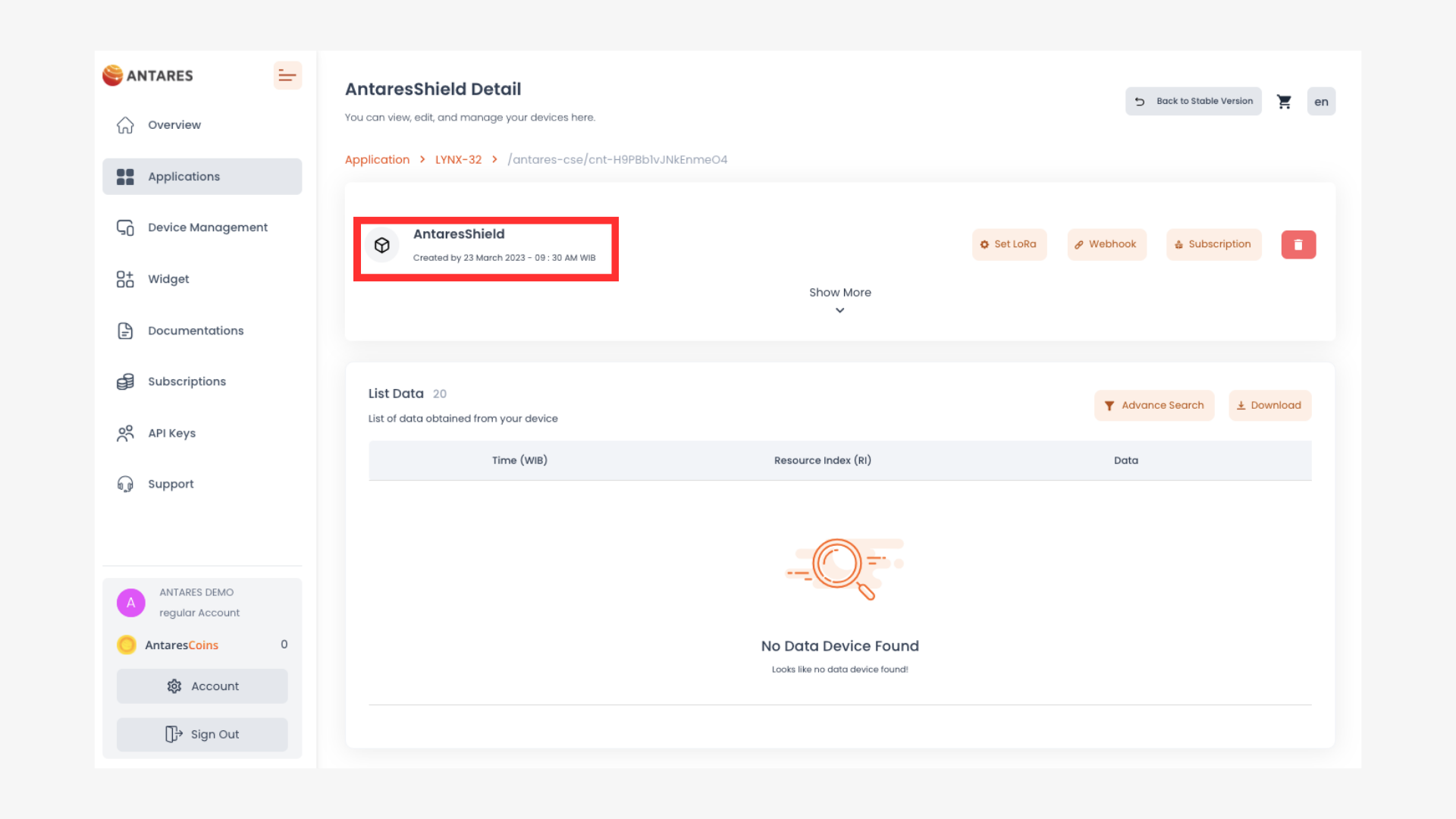

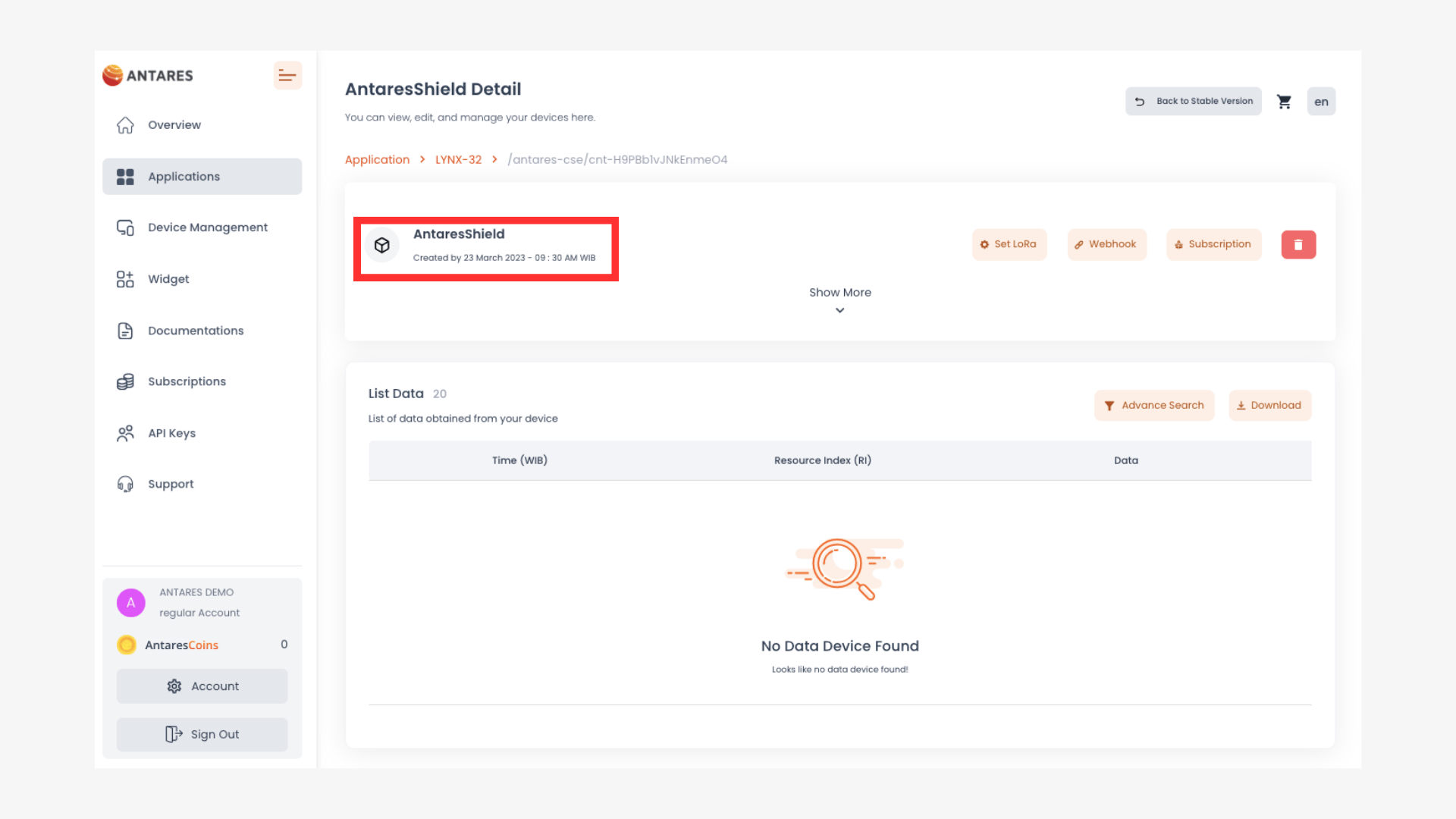

Device Name Display
4. Compile and Upload Program
Connect the Lynx-32 with your computer and make sure the Communication Port is read.
On Windows operating systems the check can be done via Device Manager. If your Lynx-32 is read then the USB-Serial CH340 appears with the port adjusting the port availability (in this case it reads COM4).
Device Manager Disp;ay
Set up the ESP32 board by clicking Tools > Board > esp32 in the Arduino IDE, then make sure the ESP32 Dev Module is used. Select the port according to the communication port that is read (in this case COM4). The result will look like the following image.
Display of Board Specifications and Ports Used
After all the setup is complete, upload the programme by pressing the arrow icon as shown below. Wait for the compile and upload process to finish
Ikon Compile untuk Centang dan Ikon Upload untuk Tanda Panah
The Tick icon on the Arduino IDE is just the verify process. Usually used to compile the programme to find out whether there are errors or not.
The Arrow icon on the Arduino IDE is the verify and upload process. Usually used to Compile the programme as well as Flash the programme to the target board.
If the programme upload is successful, it will look like the following image.
Arduino IDE page image after successful upload.
After uploading the programme, you can view the serial monitor to debug the programme. The serial monitor icon is shown in the following image.
Serial Monitor Icon
Set the serial baud rate to 115200 and select BothNL & CR. The result will look like the following image.

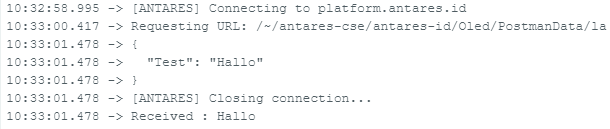

Serial Monitor Display
Make sure the serial baud rate matches the value defined in the programme code. If the serial baud rate is not the same between the programme code and the serial monitor, the ASCII characters will not be read properly.
5. POSTMAN Software Setup
In this step you need POSTMAN software, you can input the end-point, request header and request body first by following the following format.
Customise your-application-name and your-device-name to the names registered to your Antares account.
Request Header
Key
Value
X-M2M-Origin
your-access-key
Content-Type
application/json;ty=4
Accept
application/json
Customise your-access-key with your Antares account access key.
The result will be as shown below.
Image of end-point and header settings in POSTMAN software.
Next, you need to input the request body by following the following format.
Request Body
In the POSTMAN software, select the Body tab then select raw and enter the payload according to the request body you want to use as shown below.
Image of the contents of the payload request body in POSTMAN software.
Customise the contents of the "con" field according to the "key" and "value" you want to send.
6. Sending POSTMAN Messages to the Antares Server
After the POSTMAN software setup is complete, it's time to send the POST command. The "Test" field is filled with the string "Hallo" as the message to be sent via HTTP protocol to the Antares server.
If you have finished filling in the "Test" field, then press the Send button on the POSTMAN software. Looks like the following picture.

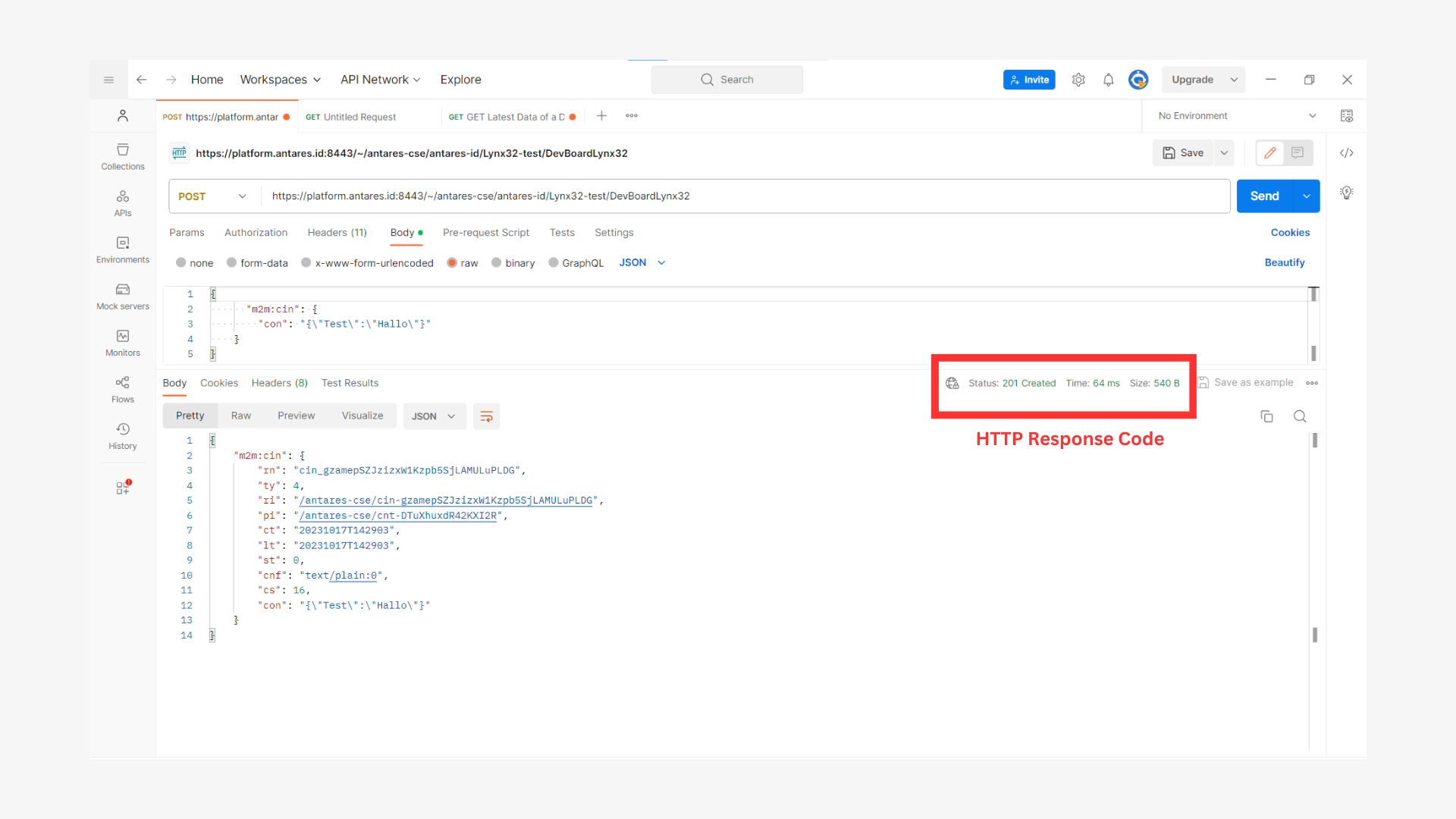

Image of API hit response in POSTMAN software.
7. Check Data in Antares
After uploading the programme successfully, then open the device antares page and see if the data has been successfully sent.
Image of the Antares Console Page When Data is Successfully Received
Data received by ESP8266 with HTTP protocol in the form of Test variable.
8. Viewing Get Messages

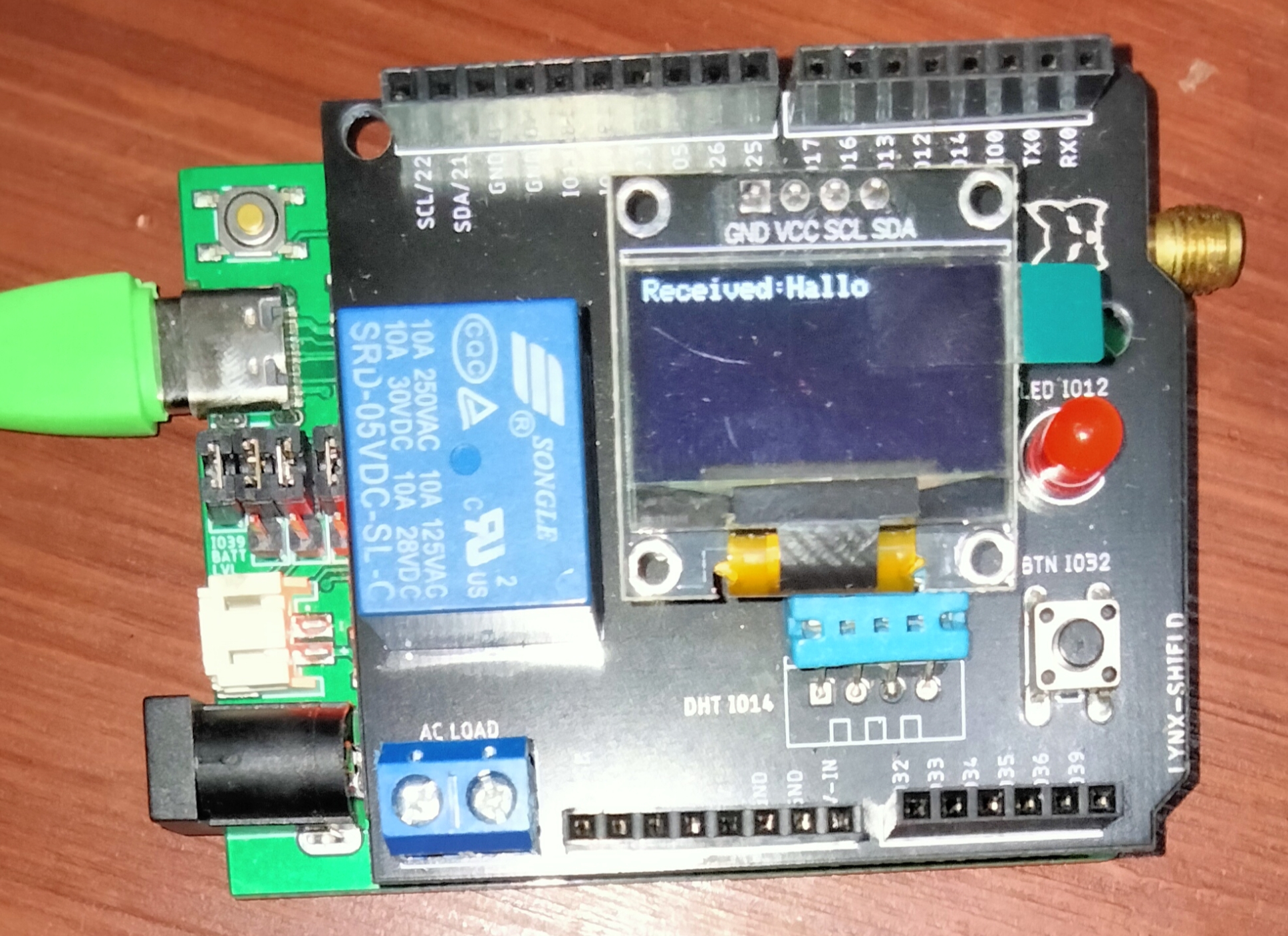

Get data from the Antares IoT Platform and display it on the OLED display after connecting to Wi-Fi is shown in the figure below:
#include <AntaresESPHTTP.h>
#include <Adafruit_SSD1306.h> // Include the OLED library
#define ACCESSKEY "YOUR-ACCESS-KEY" // Replace with your Antares account access key
#define WIFISSID "YOUR-WIFI-SSID" // Replace with your Wi-Fi SSID
#define PASSWORD "YOUR-WIFI-PASSWORD" // Replace with your Wi-Fi password
#define projectName "YOUR-APPLICATION-NAME" // Replace with the Antares application name that was created
#define deviceName "YOUR-DEVICE-NAME" // Replace with the Antares device name that was created
const unsigned long interval = 10000; // 10 s interval to send message
unsigned long previousMillis = 0; // will store last time message sent
AntaresESPHTTP antares(ACCESSKEY);
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
#define OLED_RESET -1 // Change this if your OLED module has a different reset pin
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET); // Create an OLED display object
void setup() {
Serial.begin(115200);
antares.setDebug(true);
antares.wifiConnection(WIFISSID, PASSWORD);
// Initialize the OLED display
if (!display.begin(SSD1306_SWITCHCAPVCC, 0x3C)) {
Serial.println(F("SSD1306 allocation failed"));
for (;;)
;
}
// Clear the buffer and display the initial message
display.clearDisplay();
display.setTextSize(1);
display.setTextColor(SSD1306_WHITE);
display.setCursor(0, 0);
display.println("Hallo Test");
display.display();
delay(2000); // Display the message for 2 seconds
}
void loop() {
if (millis() - previousMillis > interval) {
previousMillis = millis();
// Get the latest data from your Antares device
antares.get(projectName, deviceName);
// Check if we're actually getting data
if(antares.getSuccess()) {
String test = antares.getString("Test");
// Update the OLED display
Serial.println("Received : " + test);
display.clearDisplay();
display.setTextSize(1);
display.setTextColor(SSD1306_WHITE);
display.setCursor(0, 0);
display.println("Received:" + test);
display.display();
}
}
}
