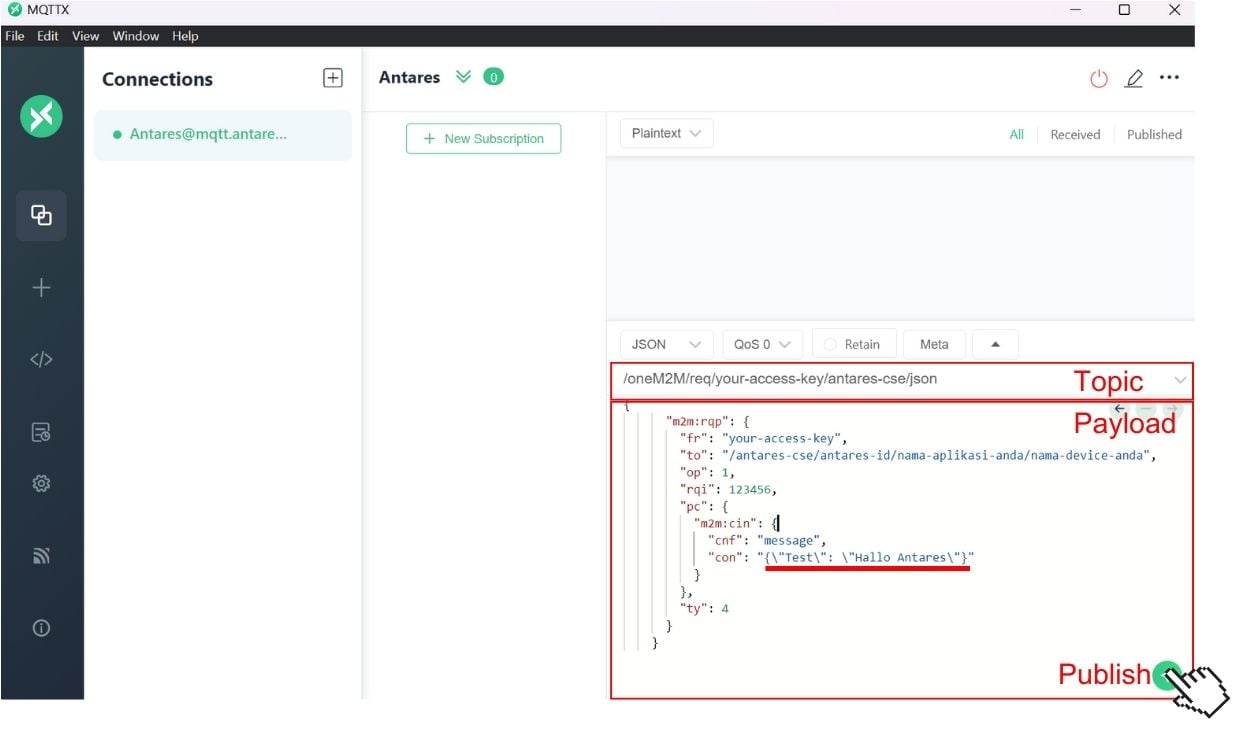

  • 6. Sending MQTTX Messages to Antares Server
  • 7. Check Data in Antares
  • 8. View Retrieve Message
  1. Code and library examples
  2. ESP32 (Wi-Fi)
  3. ESP32 (Wi-Fi) MQTT Protocol
  4. Simple Project Lynx-32 MQTT Antares

Retrieve Data displayed on OLED Display

PreviousSend DHT 11 Data and Display on OLEDNextDHT 11 Send Data and Retrieve Data displayed on OLED

Last updated 8 months ago

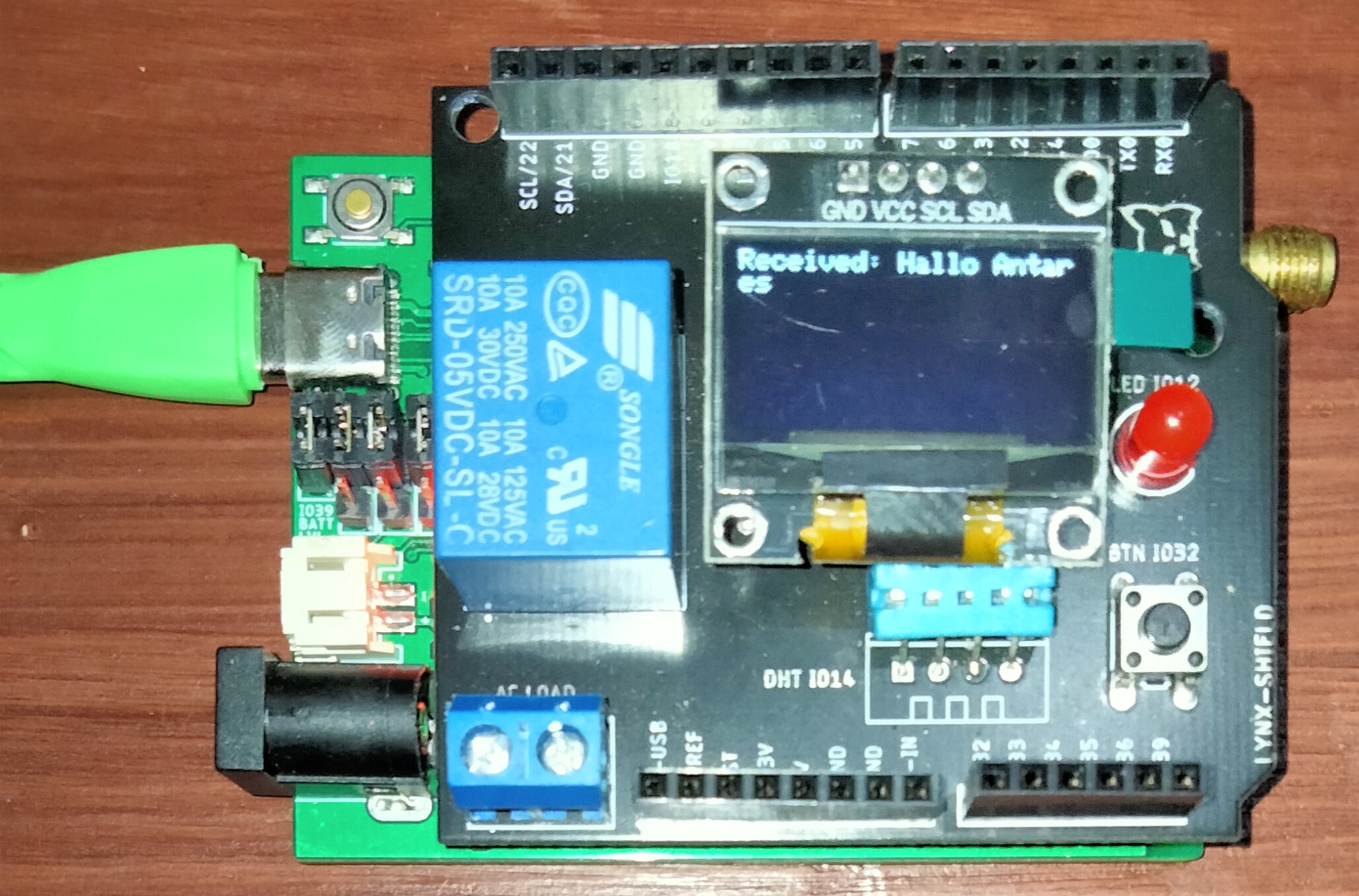

In this project, you will use the Antares Workshop Shield on the Lynx-32 Development Board module. In this Antares Shield Workshop, there are temperature, humidity (DHT11), relay, LED and push button sensors. You will monitor the temperature and humidity according to the specified interval period. The results of the data sent by the sensors can be monitored through the Antares console.

Prerequisites

The materials required follow the General Prerequisites on the previous page. If you have not prepared the requirements on that page, then you can visit the following page.

The additional materials specific to this project are as follows.

  1. Shield Workshop Antares

  2. I2C-based 0.96inch 128x64 pixel SSD1036 OLED module

  1. Antares ESP HTTP Library. This documentation uses the Antares ESP MQTT library version 1.0.

If you have not installed Antares ESP MQTT version 1.0, you can follow these steps.

Antares Wi-Fi MQTT

  1. DHT11 Library. This documentation uses DHT11 Sensor Library version 1.4.4.

If you have not installed the DHT11 Sensor Library version 1.4.4. you can follow the steps in the following link.

DHT11 Sensor Library

  1. SSD1306 OLED Library. This documentation uses Adafruit SSD1306 by Adafruit version 2.5.7.

If you have not installed the Adafruit SSD1306 by Adafruit library version 2.5.7. you can follow the steps in the following link.

Adafruit SSD1306

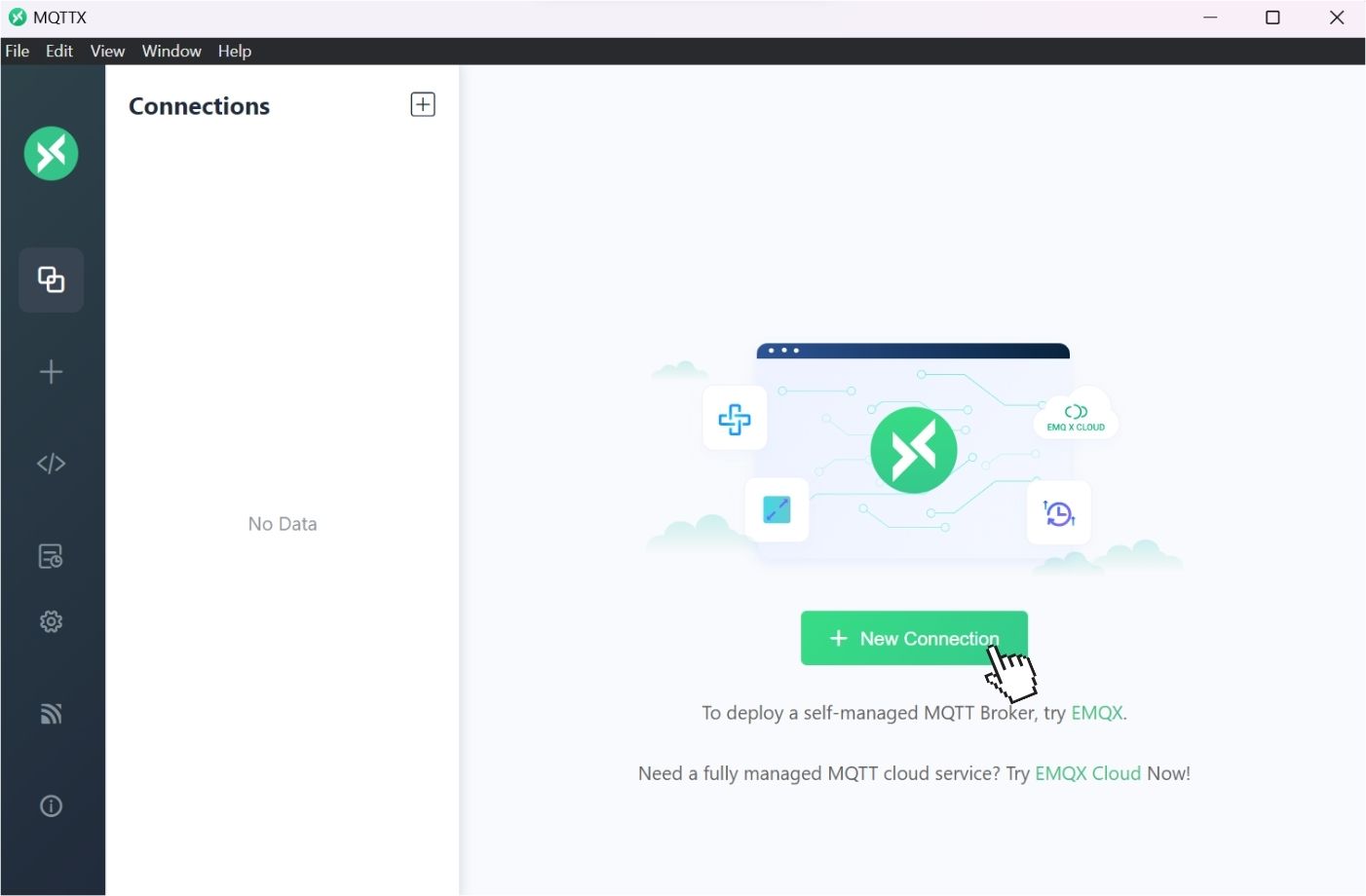

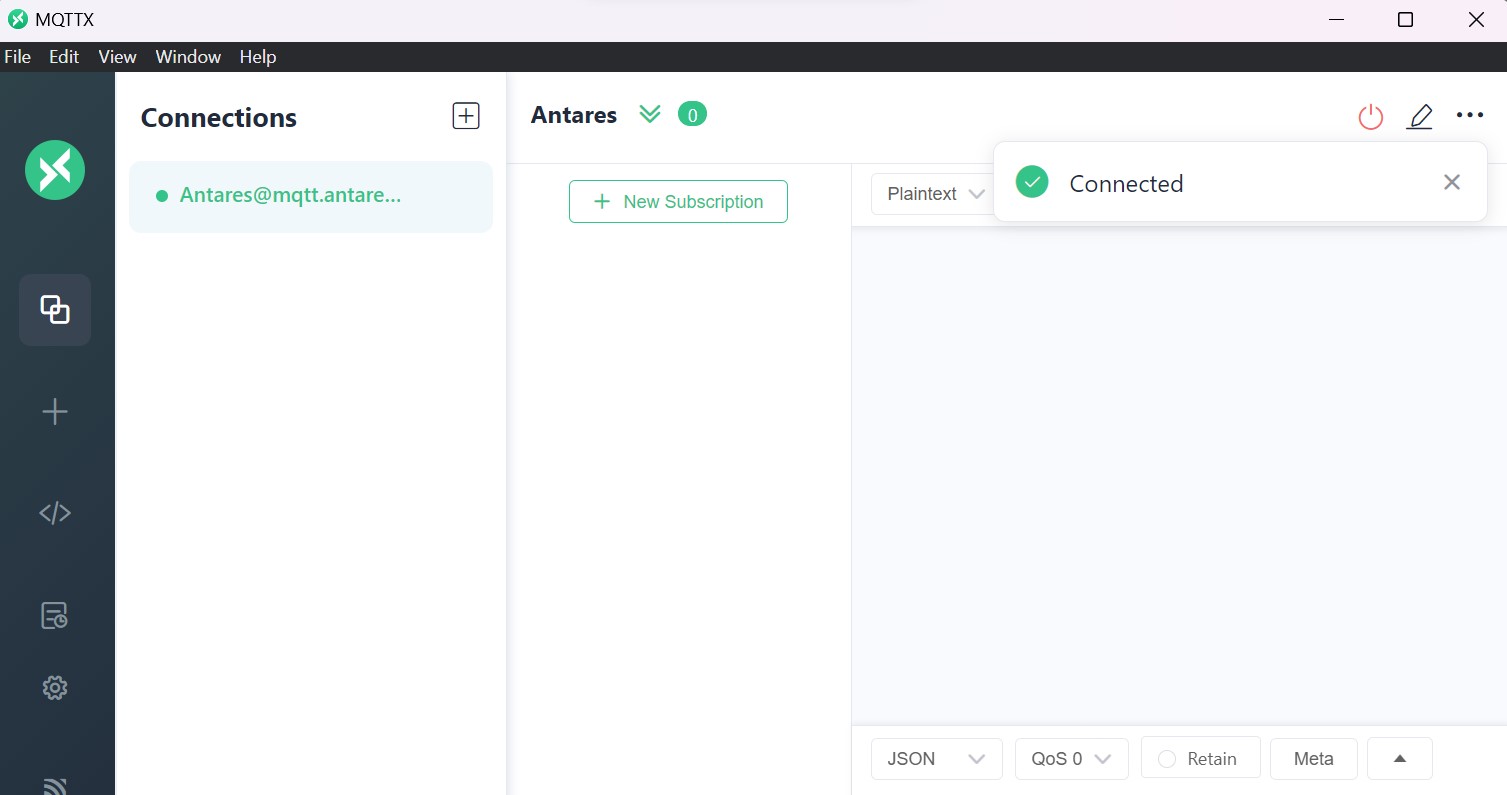

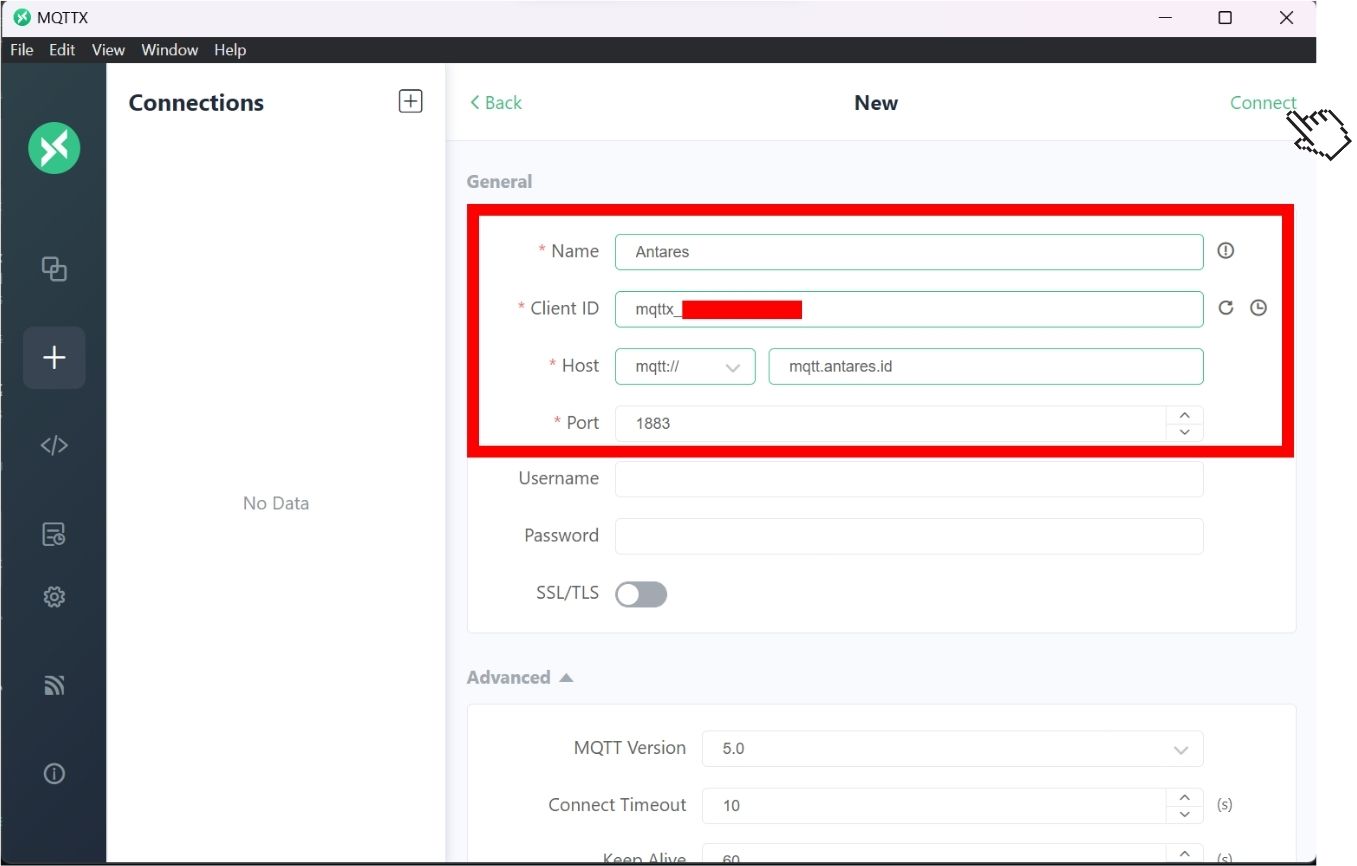

  1. MQTTX Software

If you have not installed the MQTTX Software, you can follow the steps in the following link.

MQTTX Installation

Follow These Steps

1. Launch the Arduino IDE application

2. Opening Sample Programme

You can open the programme code in the Arduino IDE via File > Examples > Antares ESP MQTT > Lynx32-Simple-Project > RETRIEVE_DATA_OLED.

Here is the RETRIEVE_DATA_OLED example programme code.

#include <AntaresESPMQTT.h>  // Import the AntaresESPMQTT library for communication with Antares
#include <Adafruit_SSD1306.h>  // Import the Adafruit_SSD1306 library for controlling the OLED display

#define ACCESSKEY "YOUR-ACCESS-KEY"       // Antares account access key
#define WIFISSID "YOUR-WIFI-SSID"         // Wi-Fi SSID to connect to
#define PASSWORD "YOUR-WIFI-PASSWORD"     // Wi-Fi password

#define projectName "YOUR-APPLICATION-NAME"   // Name of the application created in Antares
#define deviceName "YOUR-DEVICE-NAME"     // Name of the device created in Antares

AntaresESPMQTT antares(ACCESSKEY);  // Initialize the AntaresESPMQTT object with the access key

#define SCREEN_WIDTH 128  // OLED display width
#define SCREEN_HEIGHT 64  // OLED display height
#define OLED_RESET -1  // OLED display reset pin

Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);  // Initialize the display object

void callback(char topic[], byte payload[], unsigned int length) {
  // Callback function to be executed when a message is received
  antares.get(topic, payload, length);

  Serial.println("New Message!");
  Serial.println("Topic: " + antares.getTopic());
  Serial.println("Payload: " + antares.getPayload());

  String receivedData = antares.getString("Test");
  Serial.println("Received: " + receivedData);

  display.clearDisplay();
  display.setTextSize(1);
  display.setTextColor(SSD1306_WHITE);
  display.setCursor(0, 0);
  display.println("Received: " + receivedData);
  display.display();
}

void setup() {
  Serial.begin(115200);  // Start serial communication at baud rate 115200
  antares.setDebug(true);  // Enable debug mode for Antares
  antares.wifiConnection(WIFISSID, PASSWORD);  // Connect to Wi-Fi using SSID and password
  antares.setMqttServer();  // Set up the Antares MQTT server
  antares.setCallback(callback);  // Set the callback function for MQTT messages

  if (!display.begin(SSD1306_SWITCHCAPVCC, 0x3C)) {  // Initialize the OLED display
    Serial.println(F("SSD1306 allocation failed"));  // Display a message if OLED initialization fails
    for (;;) ;  // Halt the program
  }

  display.clearDisplay();  // Clear the OLED display
  display.setTextSize(1);  // Set text size
  display.setTextColor(SSD1306_WHITE);  // Set text color
  display.setCursor(0, 0);  // Set text cursor position
  display.println("Waiting for data...");  // Display initial message
  display.display();  // Show the message on the display
}

void loop() {
  antares.checkMqttConnection();  // Check MQTT connection to Antares
}

3. Set WiFi Credential and Antares Credential in Program Code

Change the HTTP Protocol parameters in the following variables *ACCESSKEY, *WIFISSID, *PASSWORD, *projectName, and *deviceName. Adjust to the parameters in the Antares console.

#define ACCESSKEY "YOUR-ACCESS-KEY"       // Replace with your Antares account access key
#define WIFISSID "YOUR-WIFI-SSID"         // Replace with your Wi-Fi SSID
#define PASSWORD "YOUR-WIFI-PASSWORD"     // Replace with your Wi-Fi password

#define projectName "YOUR-APPLICATION-NAME"   // Replace with the Antares application name that was created
#define deviceName "YOUR-DEVICE-NAME"     // Replace with the Antares device name that was created

The *Access key parameter is obtained from your Antares account page.

The WIFISSID parameter is obtained from the Wi-Fi/Hotspot name that will be used by the Lynx-32 Development Board. An example is shown below.

The *PASSWORD parameter is obtained from the Wi-Fi password you are currently using.

The parameters *projectName and *deviceName are obtained from the Application Name and Device Name that have been created in the Antares account.

4. Compile and Upload Program

Connect the Lynx-32 with your computer and make sure the Communication Port is read.

On Windows operating systems the check can be done via Device Manager. If your Lynx-32 is read then the USB-Serial CH340 appears with the port adjusting the port availability (in this case it reads COM4).

Set up the ESP32 board by clicking Tools > Board > esp32 in the Arduino IDE, then make sure the ESP32 Dev Module is used. Select the port according to the communication port that is read (in this case COM4). The result will look like the following image.

After all the setup is complete, upload the programme by pressing the arrow icon as shown below. Wait for the compile and upload process to finish

The Tick icon on the Arduino IDE is just the verify process. Usually used to Compile the programme to find out whether there are errors or not. The Arrow icon on the Arduino IDE is the verify and upload process. Usually used to Compile the programme as well as Flash the programme to the target board.

If the programme upload is successful, it will look like the following image.

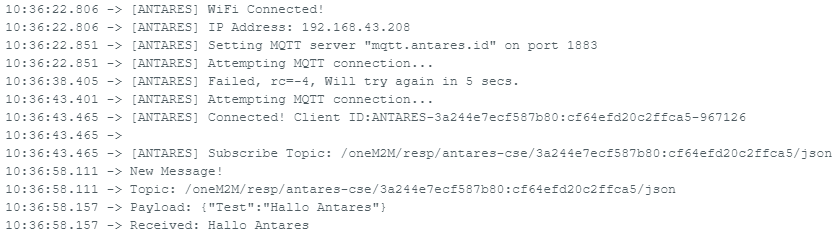

After uploading the programme, you can view the serial monitor to debug the programme. The serial monitor icon is shown in the following image.

Set the serial baud rate to 115200 and select BothNL & CR. The result will look like the following image.

Make sure the serial baud rate matches the value defined in the programme code. If the serial baud rate is not the same between the programme code and the serial monitor, the ASCII characters will not be read properly.

5. MQTTX Software Setup

Open the MQTTX App, then select New Connection

In order to configure MQTTX with Antares broker, adjust the Name, Host and Port as shown below, then click Connect.

If it is connected, there is a notification as shown below

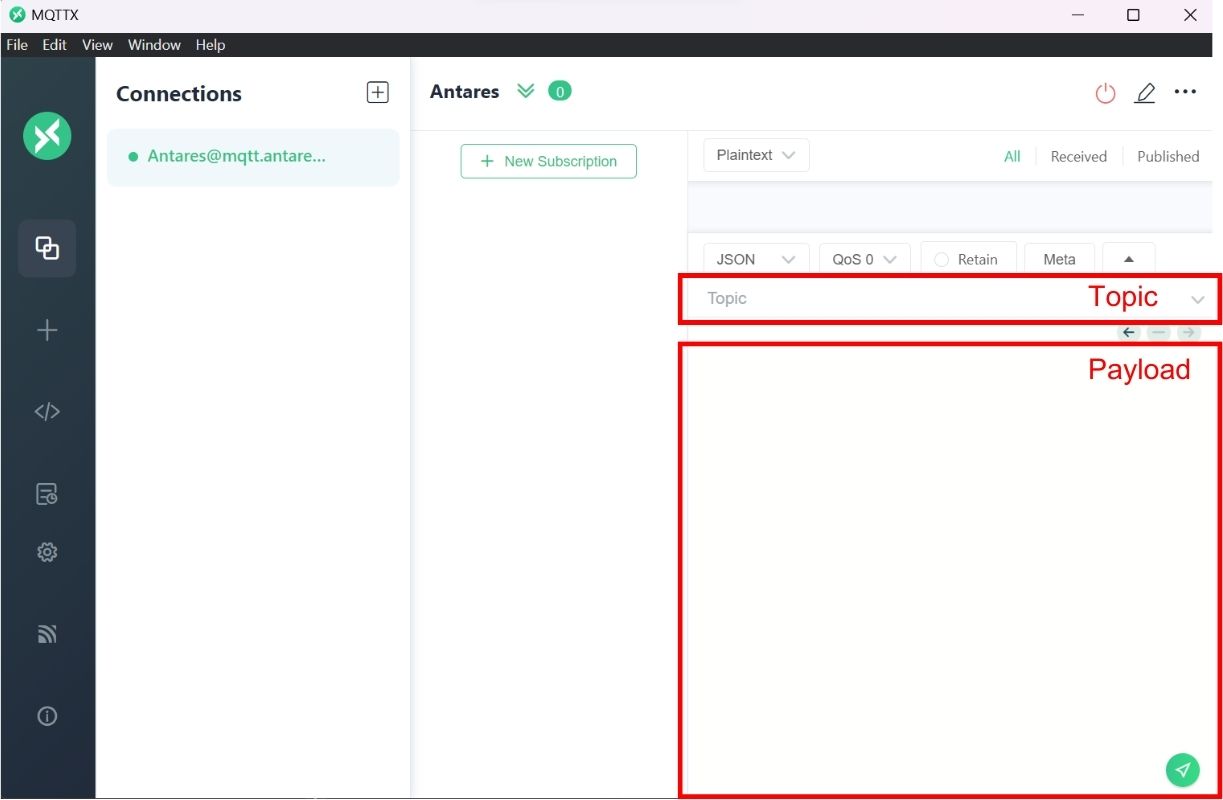

Enter Topic and Payload in the fields in MQTTX.

Field
Value

Topic

/oneM2M/req/your-access-key/antares-cse/json

Payload

Customise your-access-key, your-application-name, and your-device-name to the names registered to your Antares account. Fill in the "Field" data and "Value" data in "con" as you wish.

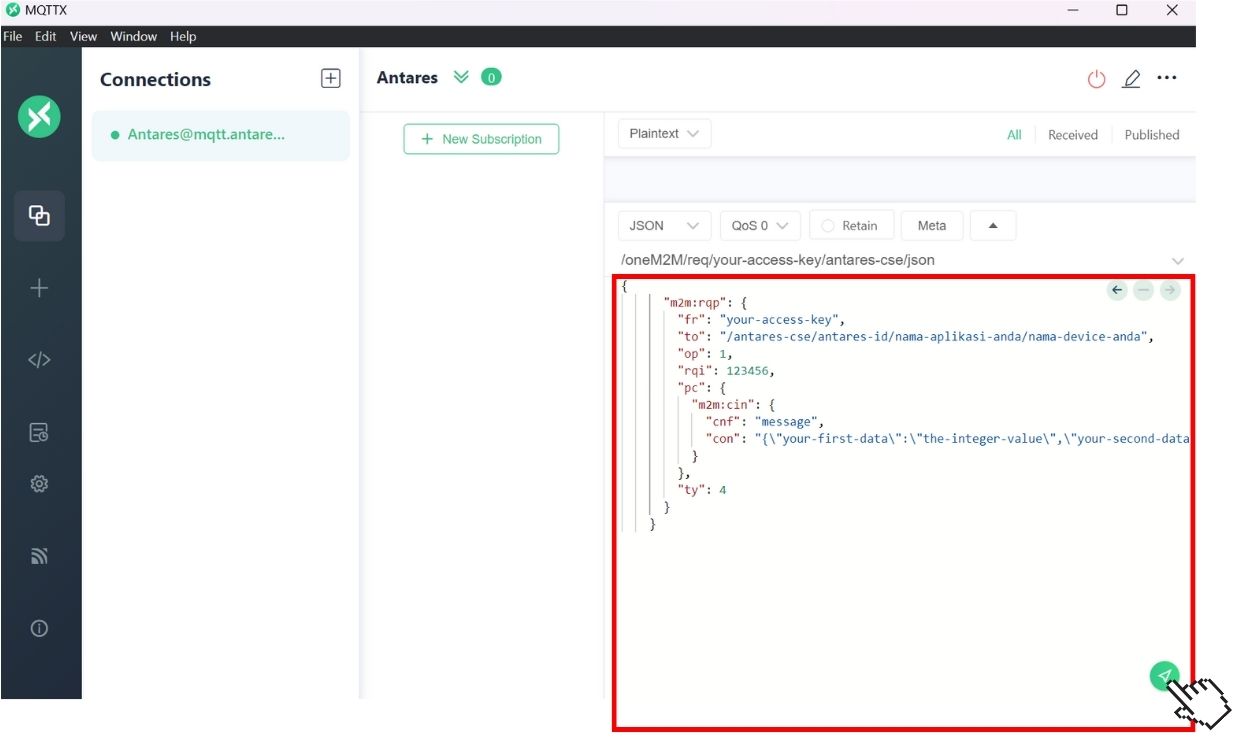

In the MQTTX software, enter the Topic and Payload that you want to use. Then click Publish to send the message from MQTTX to the Antares server.

6. Sending MQTTX Messages to Antares Server

After the MQTTX software setup is complete, it's time to send the PUBLISH command. The "Test" field is filled with the string "Hello Antares" as the message that will be sent via the MQTT protocol to the Antares server.

{
      "m2m:rqp": {
        "fr": "your-access-key",
        "to": "/antares-cse/antares-id/nama-aplikasi-anda/nama-device-anda",
        "op": 1,
        "rqi": 123456,
        "pc": {
          "m2m:cin": {
            "cnf": "message",
            "con": "{\"Test\":\"Hallo Antares\"}"
          }
        },
        "ty": 4
      }
    }

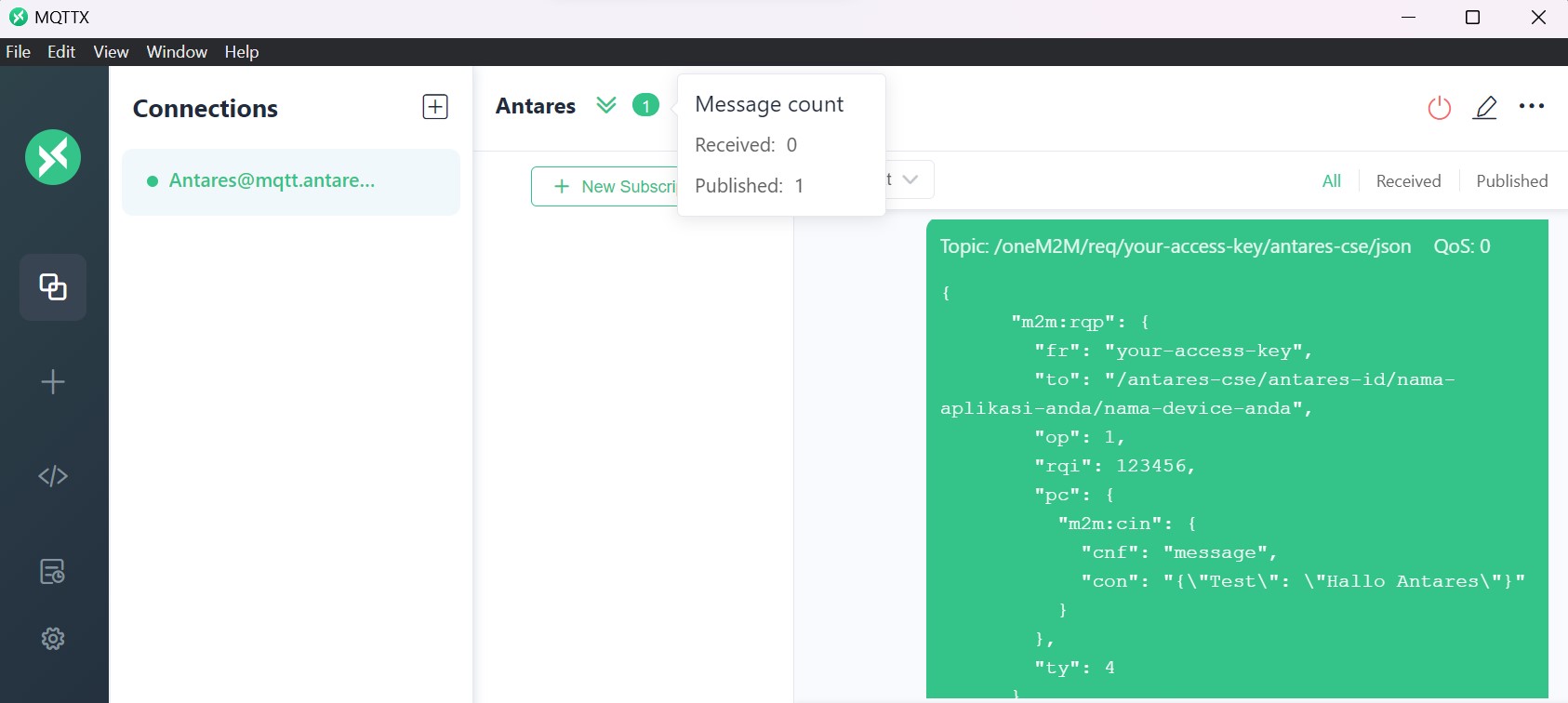

If you have finished filling in the "Test" field, then press the Publish button on the MQTTX software, as shown below.

Publish to send the message to the Antares server

7. Check Data in Antares

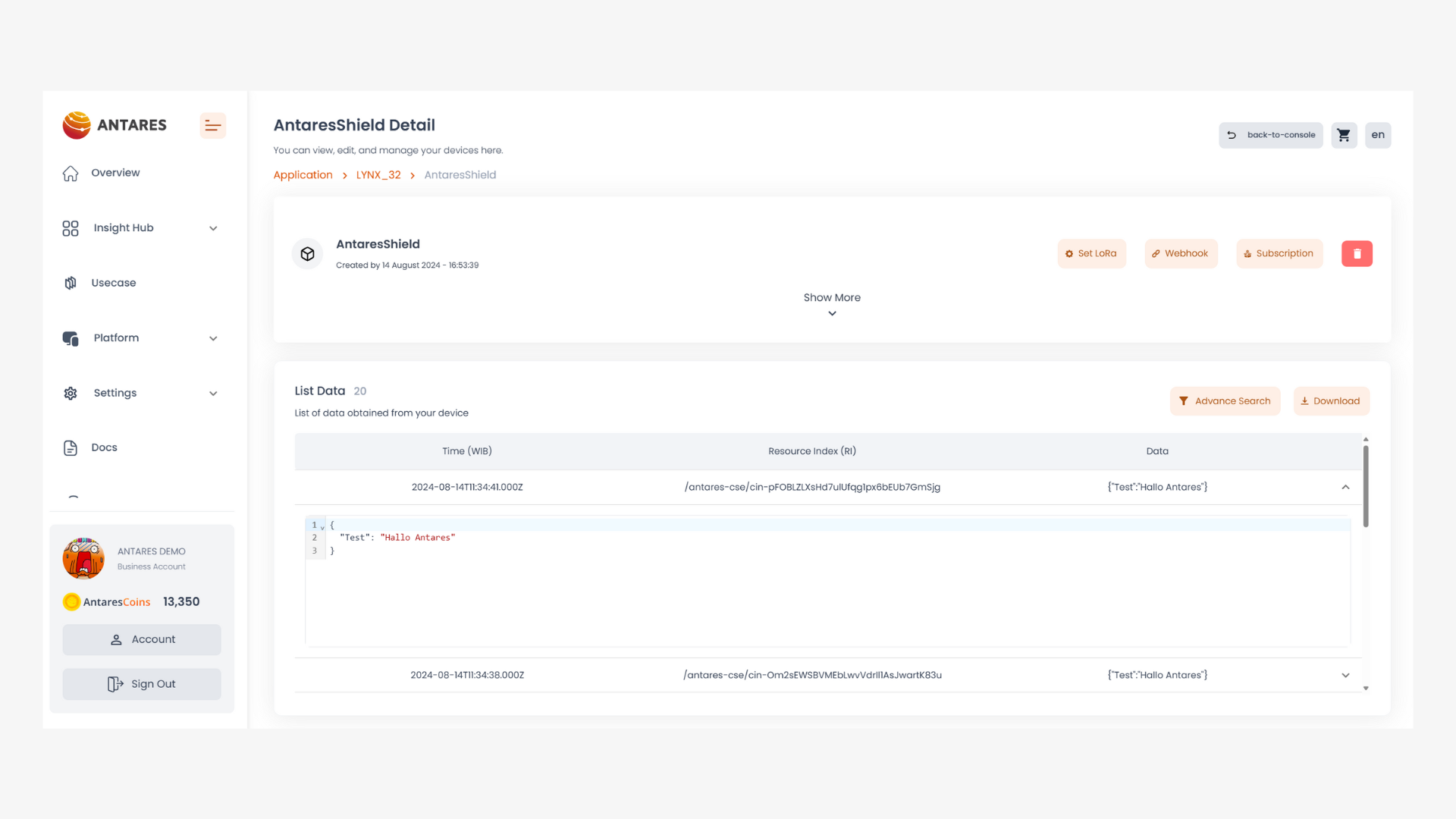

After uploading the programme successfully, then open the device antares page and see if the data has been successfully sent.

The data received by LYNX-32 with the MQTT protocol is in the form of Test variables.

8. View Retrieve Message

Retrieve data from the Antares IoT Platform and display it on the OLED display after connecting to Wi-Fi as shown in the figure below:

{
      "m2m:rqp": {
        "fr": "your-access-key",
        "to": "/antares-cse/antares-id/nama-aplikasi-anda/nama-device-anda",
        "op": 1,
        "rqi": 123456,
        "pc": {
          "m2m:cin": {
            "cnf": "message",
            "con": "{\"your-first-data\":\"the-integer-value\",\"your-second-data\":\"the-string-data\"}"
          }
        },
        "ty": 4
      }
    }
General Prerequisites ESP32 Wi-Fi
SSD1036 0.96inch OLED Module Picture
Access Key Location on Antares Account Page
WIFISSID
Application Name Display
Device Name Display
Device Manager Display
Display of Board Specifications and Ports Used
Compile Icon for Tick and Upload Icon for Arrow
Arduino IDE page image after successful upload
Serial Monitor Icon
Serial Monitor Display
Creating a New Connection
Antares MQTT Broker Configuration
Antares Broker MQTTX Connected
Topic and Payload pages in MQTTX
Publish to send the message to the Antares server
Image of MQTTX Payload content
Notification Message Published
Image of the Antares Console Page When Data is Successfully Received.
OLED Display
