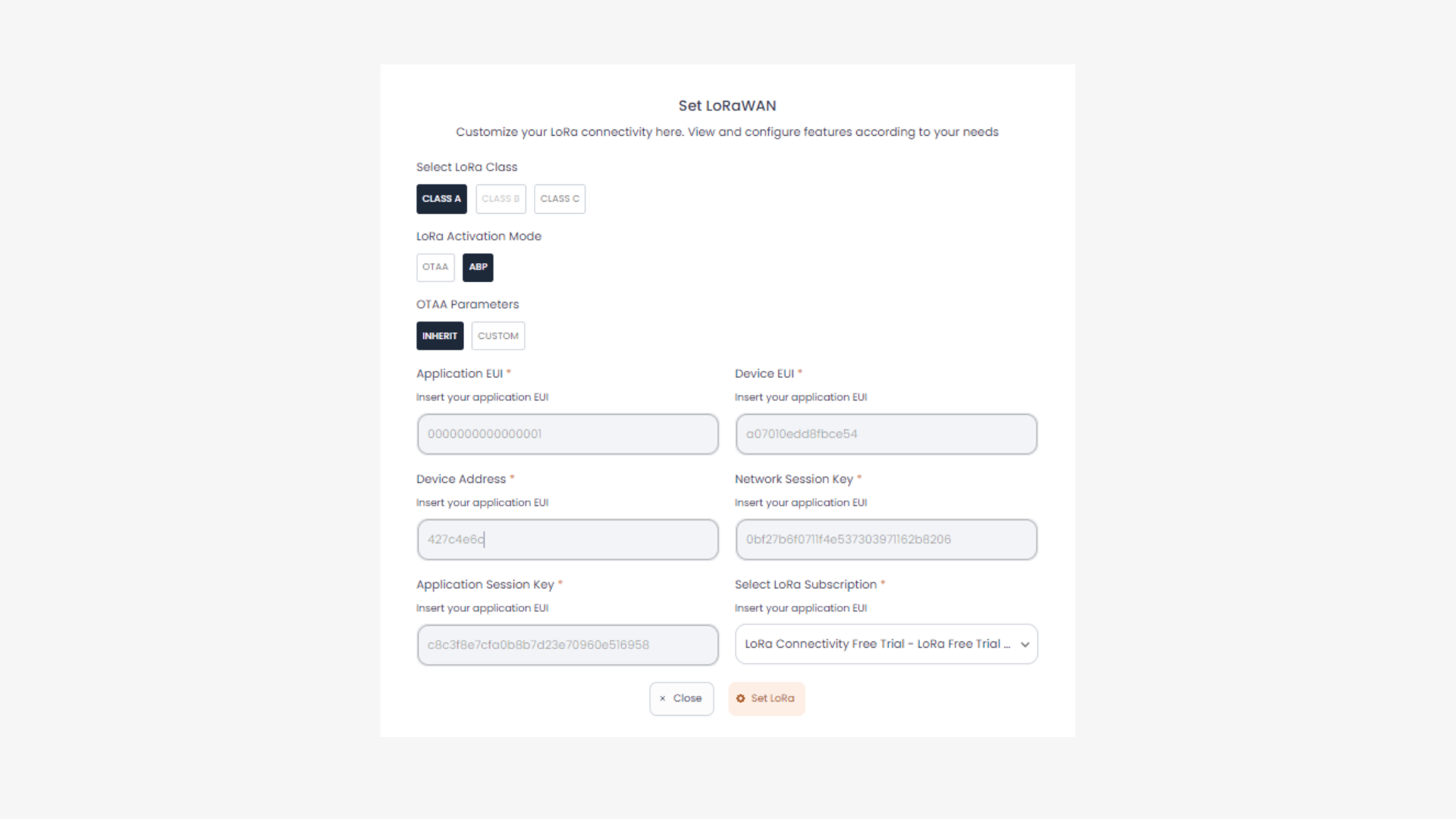

  • 3. Set LoRaWAN Parameters in Antares
  • 4. Set LoRaWAN Parameters in Programme Code
  • 5. Compile and Upload Program
  • 6.OLED Display Results
  • 7. Check Data in Antares
  1. Code and library examples
  2. ESP32 (LoRa)
  3. Project Simple Lynx-32 LoRa Antares

Uplink DHT11 Data and Display on OLED Display

PreviousUplink Data DHT11 dengan Push ButtonNextDownlink Data Displayed on OLED

Last updated 8 months ago


In this project, you will use the Antares Workshop Shield on the Lynx-32 Antares Development Board module. The Antares Workshop Shield contains temperature, humidity (DHT11), relay, LED and push button sensors. You will monitor the temperature and humidity according to the specified interval period. The results of the data sent by the sensor can be monitored through the Antares console.

Prerequisites

The required materials follow the General Prerequisites on the previous page. If you have not prepared the requirements on that page, then you can visit the following page.

The additional materials specific to this project are as follows.

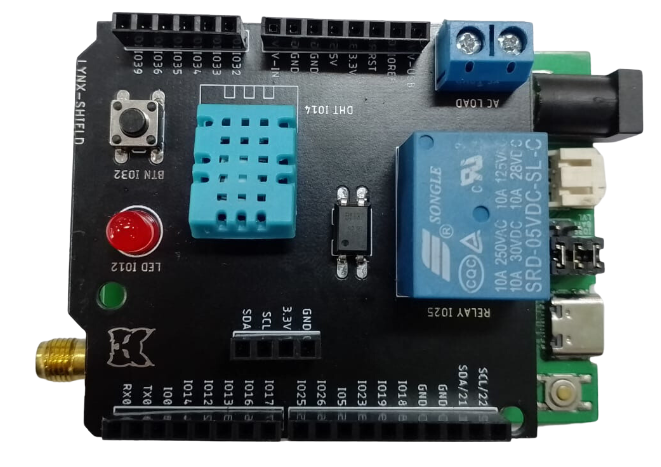

  1. Shield Workshop Antares

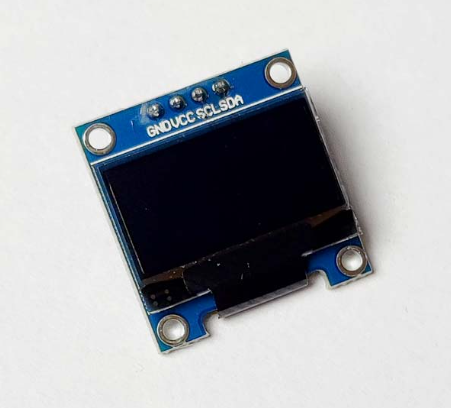

  2. SSD1306 0.96inch 128x64 pixel OLED module based on I2C.

  1. DHT11 Library. This documentation uses DHT11 Sensor Library version 1.4.4.

If you have not installed the DHT11 Sensor Library version 1.4.4, you can follow the steps at the following link.

DHT11 Sensor Library

  1. OLED display library. This documentation uses Adafruit_SSD1306 version 2.5.7.

If you have not installed the library Adafruit_SSD1306 version 2.5.7, you can follow the steps in the following link.

Adafruit SSD1306

Follow These Steps

1. Launch the Arduino IDE application

2. Opening Sample Programme

You can open the programme code in the Arduino IDE via File > Examples > Antares LoRaWAN > Lynx32-Simple-Project > Class A > UPLINK_DHT11_OLED_CLASS_A.

Here is the programme code of the UPLINK_DHT11_OLED_CLASS_A example.

#include <lorawan.h>
#include "DHT.h"
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>

#define OLED_RESET 4
Adafruit_SSD1306 display(OLED_RESET);

#define DHTTYPE  DHT11
#define SENSOR_DHT  14

DHT dht(SENSOR_DHT, DHTTYPE);

//ABP Credentials
/*
  Notes:
  - select ABP Activation on ANTARES
  - select inherit to generate your keys
  - nwkSKey: 32 digit hex, you can put 16 first digits by first 16 digits your access key and add 16 digits with 0 (ex : abcdef01234567890000000000000000)
  - appSKey: 32 digit hex, put 16 first digits by 0 and put last 16 digits by last 16 digit your access key (ex : 0000000000000000abcdef0123456789)
*/
const char *devAddr = "Lora-Device-Address"; // Replace with the Device Address that you have in the Antares console
const char *nwkSKey = "Network-Session-Key"; // Replace with the Network Session Key that you have in the Antares console
const char *appSKey = "Application-Session-Key"; // Replace with the Application Session Key that you have in the Antares console

const unsigned long interval = 60000;    // 60 s interval to send message
unsigned long previousMillis = 0;  // will store last time message sent
unsigned int counter = 0;     // message counter
String dataSend = "";

char myStr[50];
char outStr[255];
byte recvStatus = 0;
int channel;

const sRFM_pins RFM_pins = {
  .CS = 5,    //LYNX32 to RFM NSS
  .RST = 0,   //LYNX32 to RFM RST
  .DIO0 = 27, //LYNX32 to RFM DIO0
  .DIO1 = 2,  //LYNX32 to RFM DIO1
};

//get temperature and humidity from DHT11
float getTemperature()
{
  float t = dht.readTemperature();
  if (isnan(t)) return 0;
  return t;
}

float getHumidity()
{
  float h = dht.readHumidity();
  if (isnan(h)) return 0;
  return h;
}

void setup() {
  // Setup loraid access
  Serial.begin(115200);
  dht.begin();

  display.begin(SSD1306_SWITCHCAPVCC, 0x3C);  // OLED initialization with address 0x3C
  display.clearDisplay();
  display.setTextSize(1);
  display.setTextColor(WHITE);
  display.setCursor(0, 0);
  display.display();
  delay(2000);

  if (!lora.init()) {
    Serial.println("RFM95 not detected");
    delay(5000);
    return;
  }

  // Set LoRaWAN Class change CLASS_A or CLASS_C
  lora.setDeviceClass(CLASS_A);

  // Set Data Rate
  lora.setDataRate(SF10BW125);

  // set channel to random
  lora.setChannel(MULTI);

  // Set TxPower to 15 dBi (max)
  lora.setTxPower1(15);

  // Put ABP Key and DevAddress here
  lora.setNwkSKey(nwkSKey);
  lora.setAppSKey(appSKey);
  lora.setDevAddr(devAddr);
}

void loop() {
  // Check interval overflow
  if (millis() - previousMillis > interval) {
    previousMillis = millis();

    int t, h;
    t = getTemperature();
    h = getHumidity();
    Serial.println("Temperature : " + (String)t + " C");
    Serial.println("Humidity    : " + (String)h + " %");

    dataSend = "{\"Temp\": " + (String)t + ", \"Humd\": " + (String)h + "}";
    dataSend.toCharArray(myStr, 50);

    Serial.print("Sending : ");
    Serial.println(dataSend);

    lora.sendUplink(myStr, strlen(myStr), 0, 5);
    channel = lora.getChannel();
    Serial.print(F("Ch : "));    Serial.print(channel); Serial.println(" ");

    // Display temperature and humidity on OLED
    display.clearDisplay();
    display.setCursor(0, 0);
    display.print("Temp : ");
    display.print(t);
    display.println(" C");
    display.print("Humidity : ");
    display.print(h);
    display.println(" %");
    display.display();
  }

  // Check Lora RX
  lora.update();

  recvStatus = lora.readData(outStr);
  if (recvStatus) {
    int counter = 0;

    for (int i = 0; i < recvStatus; i++)
    {
      if (((outStr[i] >= 32) && (outStr[i] <= 126)) || (outStr[i] == 10) || (outStr[i] == 13))
        counter++;
    }
    if (counter == recvStatus)
    {
      Serial.print(F("Received String : "));
      for (int i = 0; i < recvStatus; i++)
      {
        Serial.print(char(outStr[i]));
      }
    }
    else
    {
      Serial.print(F("Received Hex : "));
      for (int i = 0; i < recvStatus; i++)
      {
        Serial.print(outStr[i], HEX); Serial.print(" ");
      }
    }
    Serial.println();
  }

}

You can open the programme code in the Arduino IDE via File > Examples > Antares LoRaWAN > Lynx32-Simple-Project > Class C > UPLINK_DHT11_OLED_CLASS_C.

Here is the programme code of the UPLINK_DHT11_OLED_CLASS_C example.

#include <lorawan.h>
#include "DHT.h"
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>

#define OLED_RESET 4
Adafruit_SSD1306 display(OLED_RESET);

#define DHTTYPE  DHT11
#define SENSOR_DHT  14

DHT dht(SENSOR_DHT, DHTTYPE);

//ABP Credentials
/*
  Notes:
  - select ABP Activation on ANTARES
  - select inherit to generate your keys
  - nwkSKey: 32 digit hex, you can put 16 first digits by first 16 digits your access key and add 16 digits with 0 (ex : abcdef01234567890000000000000000)
  - appSKey: 32 digit hex, put 16 first digits by 0 and put last 16 digits by last 16 digit your access key (ex : 0000000000000000abcdef0123456789)
*/
const char *devAddr = "Lora-Device-Address"; // Replace with the Device Address that you have in the Antares console
const char *nwkSKey = "Network-Session-Key"; // Replace with the Network Session Key that you have in the Antares console
const char *appSKey = "Application-Session-Key"; // Replace with the Application Session Key that you have in the Antares console

const unsigned long interval = 60000;    // 60 s interval to send message
unsigned long previousMillis = 0;  // will store last time message sent
unsigned int counter = 0;     // message counter
String dataSend = "";

char myStr[50];
char outStr[255];
byte recvStatus = 0;
int channel;

const sRFM_pins RFM_pins = {
  .CS = 5,    //LYNX32 to RFM NSS
  .RST = 0,   //LYNX32 to RFM RST
  .DIO0 = 27, //LYNX32 to RFM DIO0
  .DIO1 = 2,  //LYNX32 to RFM DIO1
};

//get temperature and humidity from DHT11
float getTemperature()
{
  float t = dht.readTemperature();
  if (isnan(t)) return 0;
  return t;
}

float getHumidity()
{
  float h = dht.readHumidity();
  if (isnan(h)) return 0;
  return h;
}

void setup() {
  // Setup loraid access
  Serial.begin(115200);
  dht.begin();

  display.begin(SSD1306_SWITCHCAPVCC, 0x3C);  // OLED initialization with address 0x3C
  display.clearDisplay();
  display.setTextSize(1);
  display.setTextColor(WHITE);
  display.setCursor(0, 0);
  display.display();
  delay(2000);

  if (!lora.init()) {
    Serial.println("RFM95 not detected");
    delay(5000);
    return;
  }

  // Set LoRaWAN Class change CLASS_A or CLASS_C
  lora.setDeviceClass(CLASS_C);

  // Set Data Rate
  lora.setDataRate(SF10BW125);

  // set channel to random
  lora.setChannel(MULTI);

  // Set TxPower to 15 dBi (max)
  lora.setTxPower1(15);

  // Put ABP Key and DevAddress here
  lora.setNwkSKey(nwkSKey);
  lora.setAppSKey(appSKey);
  lora.setDevAddr(devAddr);
}

void loop() {
  // Check interval overflow
  if (millis() - previousMillis > interval) {
    previousMillis = millis();

    int t, h;
    t = getTemperature();
    h = getHumidity();
    Serial.println("Temperature : " + (String)t + " C");
    Serial.println("Humidity    : " + (String)h + " %");

    dataSend = "{\"Temp\": " + (String)t + ", \"Humd\": " + (String)h + "}";
    dataSend.toCharArray(myStr, 50);

    Serial.print("Sending : ");
    Serial.println(dataSend);

    lora.sendUplink(myStr, strlen(myStr), 0, 5);
    channel = lora.getChannel();
    Serial.print(F("Ch : "));    Serial.print(channel); Serial.println(" ");

    // Display temperature and humidity on OLED
    display.clearDisplay();
    display.setCursor(0, 0);
    display.print("Temp : ");
    display.print(t);
    display.println(" C");
    display.print("Humidity : ");
    display.print(h);
    display.println(" %");
    display.display();
  }

  // Check Lora RX
  lora.update();

  recvStatus = lora.readData(outStr);
  if (recvStatus) {
    int counter = 0;

    for (int i = 0; i < recvStatus; i++)
    {
      if (((outStr[i] >= 32) && (outStr[i] <= 126)) || (outStr[i] == 10) || (outStr[i] == 13))
        counter++;
    }
    if (counter == recvStatus)
    {
      Serial.print(F("Received String : "));
      for (int i = 0; i < recvStatus; i++)
      {
        Serial.print(char(outStr[i]));
      }
    }
    else
    {
      Serial.print(F("Received Hex : "));
      for (int i = 0; i < recvStatus; i++)
      {
        Serial.print(outStr[i], HEX); Serial.print(" ");
      }
    }
    Serial.println();
  }

}

3. Set LoRaWAN Parameters in Antares

On the Antares Device console page, set LoRa by pressing the Set LoRa button as shown below.

Input LoRaWAN parameters with Lora Device Class A, Activation Mode ABP, ABP Parameters Inherit as shown below.

When selecting ABP Parameters Inherit, the LoRa parameters will be generated by Antares. From the device side, the Lynx32 Development Board needs to adjust the LoRa parameters.

Don't forget to save (copy) the Network Session Key and Application Session Key parameters before clicking Set LoRa to facilitate the next process.

Make sure your antares account has an active LoRa package.

Input LoRaWAN parameters with Lora Device Class C, Activation Mode ABP, ABP Parameters Inherit as shown below.

When selecting ABP Parameters Inherit, the LoRa parameters will be generated by Antares. From the device side, the Lynx32 Development Board needs to adjust the LoRa parameters.

Don't forget to save (copy) the Network Session Key and Application Session Key parameters before clicking Set LoRa to facilitate the next process.

Make sure your antares account has an active LoRa package.

4. Set LoRaWAN Parameters in Programme Code

Change the LoRaWAN ABP parameters in the following variables *devAddr , *nwkSkey and *appSKey. Adjust to the parameters in the Antares console.

const char *devAddr = "Lora-Device-Address";
const char *nwkSKey = "Network-Session-Key";
const char *appSKey = "Application-Session-Key"

The *devAddr parameter that has been generated by Antares can be seen on the device page after completing the LoRa Set.

The parameters *nwkSKey and *appSKey are obtained during Set LoRa in the previous step.

If you forgot to save *nwkSkey and *appSKey in the previous step then look at the accesskey in your antares account then follow the following format.

Example Accesskey = "aaaaaaaaaaaaaaaa:bbbbbbbbbbbbbbbb"; //32 digit accesskey

const char *nwkSKey = "aaaaaaaaaaaaaaaa0000000000000000"; //16 digit first accesskey plus 16 digit zero

const char *appSKey = "0000000000000000bbbbbbbbbbbbbbbb"; //16 digit zero plus 16 digit last acesskey

5. Compile and Upload Program

Connect the Lynx-32 Development Board to your computer and make sure the Communication Port is read.

On Windows operating systems the check can be done via Device Manager. If your Lynx-32 Development Board is read, the USB-Serial CH340 will appear with the port adjusting the port availability (in this case it reads COM4).

Set up the Lynx-32 Board by clicking Tools > Board > ESP32 Arduino in the Arduino IDE, then make sure the board used is the ESP32 Dev Module. Select the port according to the communicaion port that is read (in this case COM4). The result will look like the following picture.

After all the setup is complete, upload the programme by pressing the arrow icon as shown below. Wait for the compile and upload process to finish.

The Tick icon on the Arduino IDE is just the verify process. Usually used to Compile the programme to find out whether there are errors or not. The Arrow icon on the Arduino IDE is the verify and upload process. Usually used to Compile the programme as well as Flash the programme to the target board.

If the programme upload is successful, it will look like the following image.

After uploading the programme, you can view the serial monitor to debug the programme. The serial monitor icon is shown in the following image.

Set the serial baud rate to 115200 and select BothNL & CR. The result will look like the following image.

Make sure the serial baud rate matches the value defined in the programme code. If the serial baud rate is not the same between the programme code and the serial monitor, the ASCII characters will not be read properly.

6.OLED Display Results

Next you can look at the OLED display connected to the Antares Shield Workshop. The result is as shown in the following image.

7. Check Data in Antares

After uploading the programme successfully, then open the device antares page and see if the lora data has been successfully sent.

The data sent from the Lynx-32 Development Board is in the form of "counter", "port", and message in the JSON field "data". DHT11 temperature monitoring results are in the JSON field "data" which includes the fields "Temp" and "Humd". While other parameters are supporting parameters generated by the LoRaWAN Antares Infrastructure.

General Prerequisites ESP32 LoRa
Image of Development Board Lynx-32 and Shield Workshop Antares.
SSD1306 0.96inch OLED module picture.
Image of Antares Console Page for LoRa Set.
The Form image contains the LoRa Class A Parameter Set.

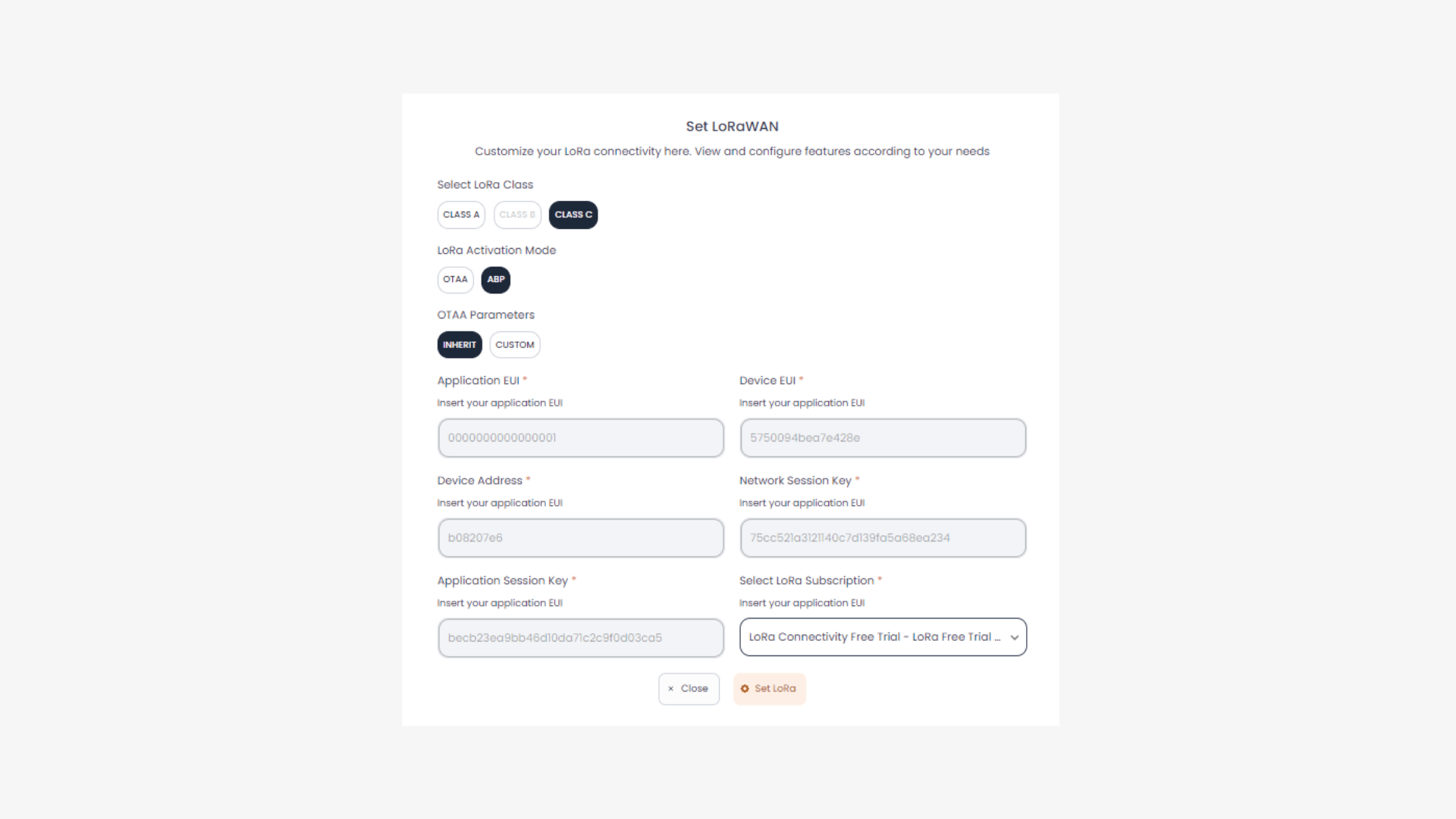

The Form image contains the LoRa Class C Parameter Set.
Figure Antares Console Page After successful LoRa Set.

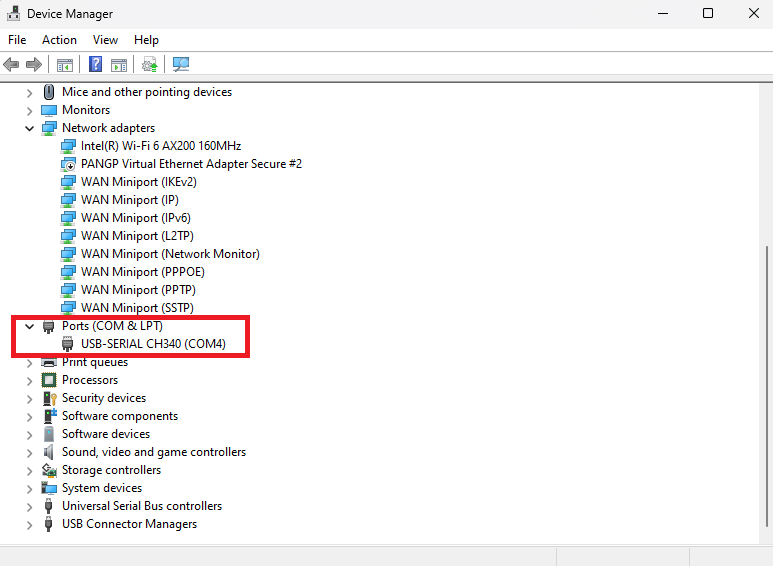

Device Manager image on Windows.

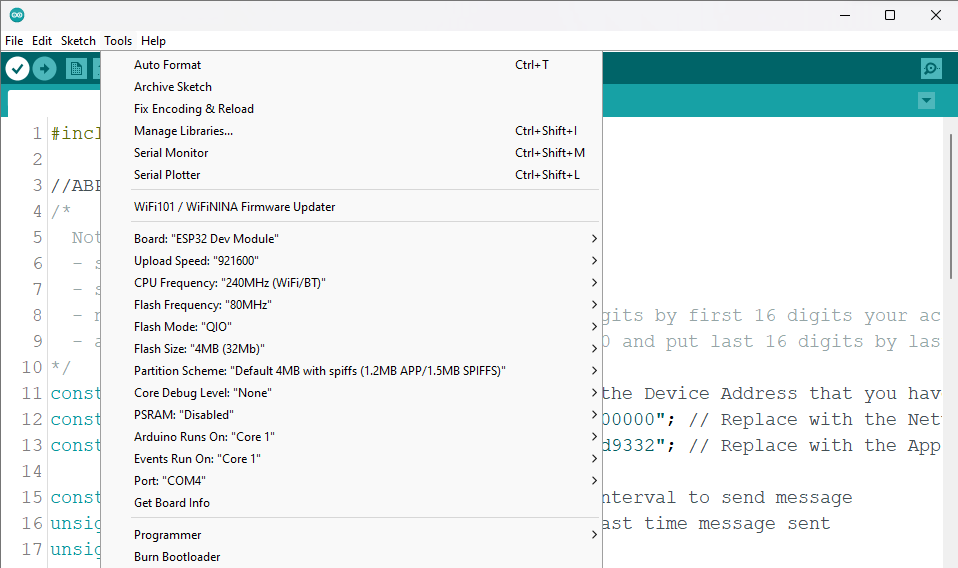

Image of the Tools Menu in the Arduino IDE.

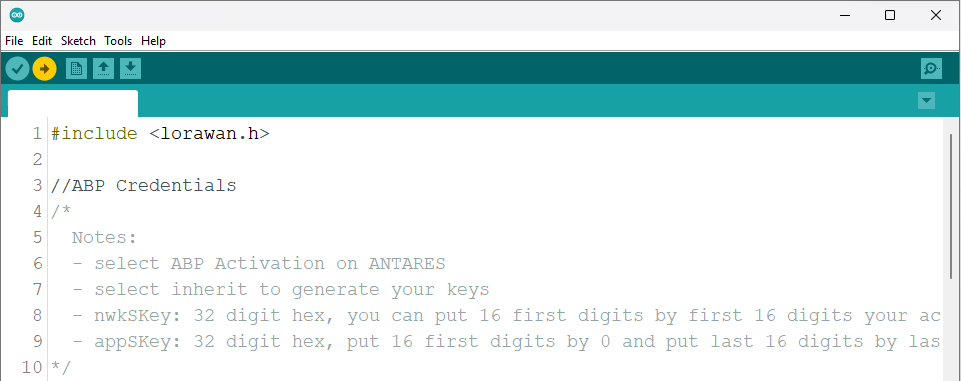

Image of the Verify and Upload Icon in the Arduino IDE.

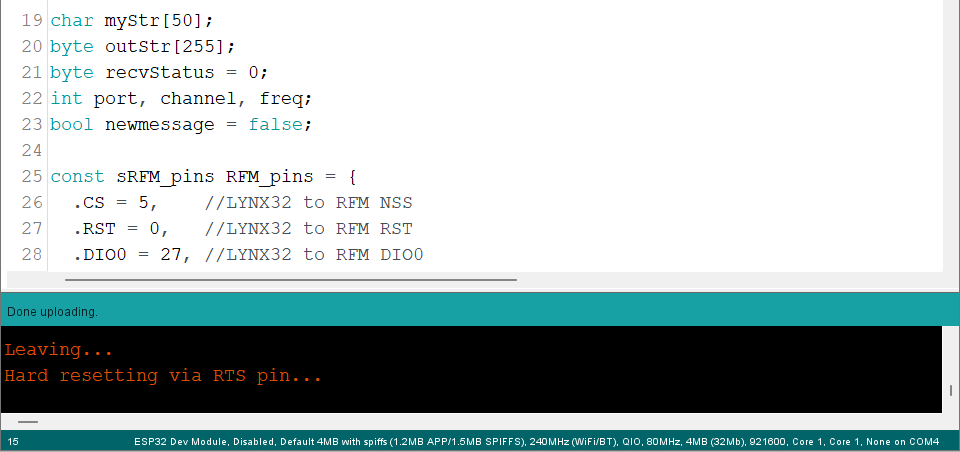

Arduino IDE page image after successful upload.
Image of the Serial Monitor Icon in the Arduino IDE.

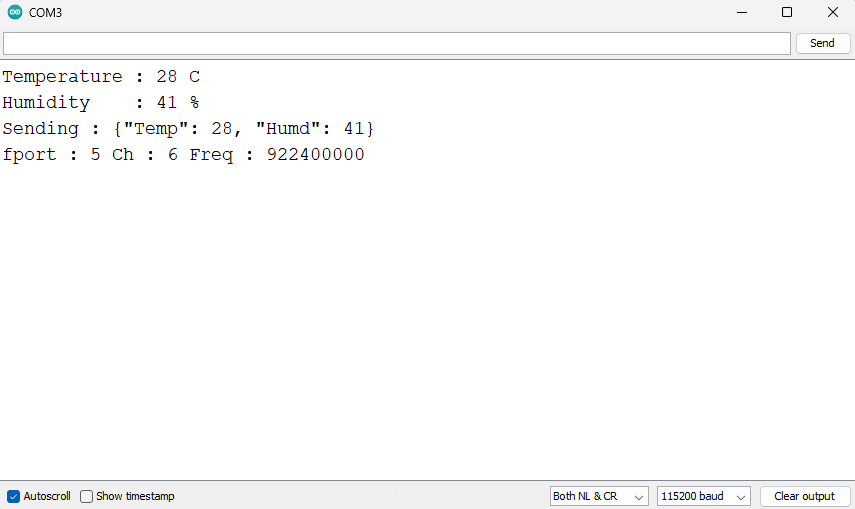

Serial Monitor Display.

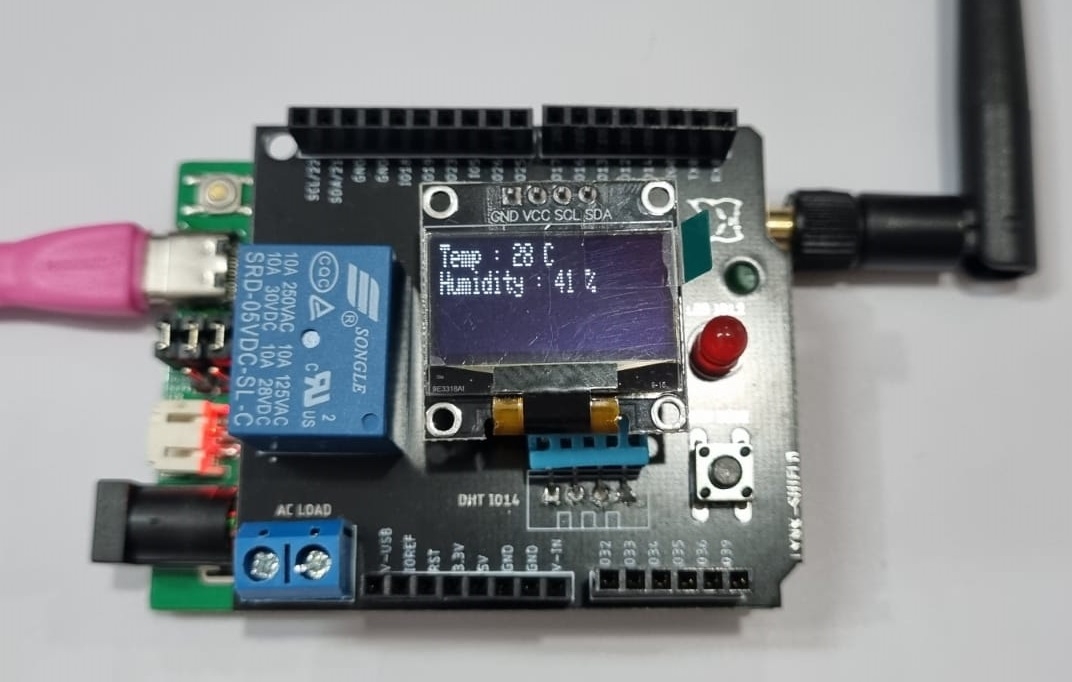

OLED Display Result Image.
Image of the Antares Console Page When LoRa Data is Successfully Received.
